Removing Water Drip Pan: Notes

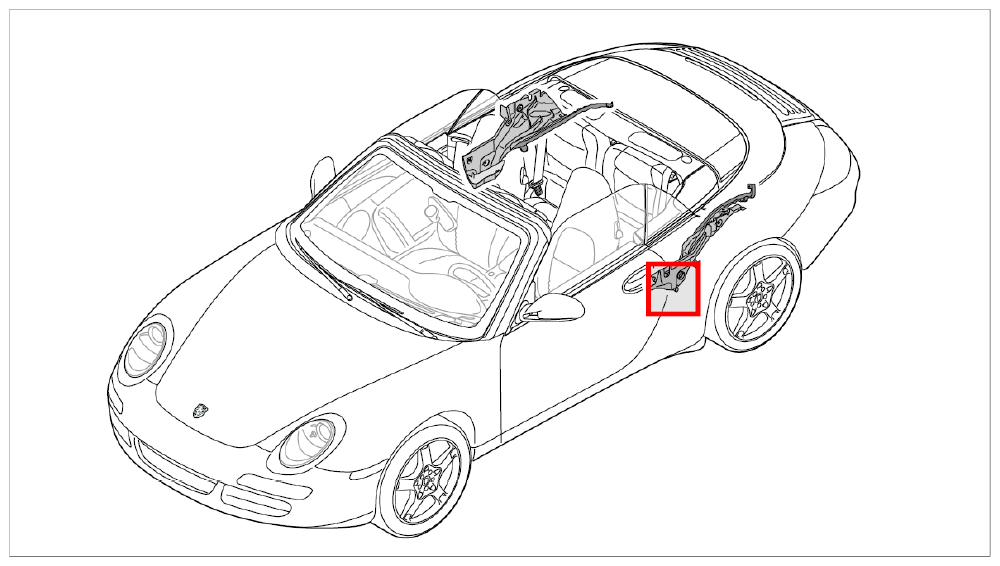

Fig 1: Identifying Water Drip Pan Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pull seal for convertible-top compartment lid up slightly close to the water drip pan.
Unscrew fastening screw -1- and remove support -2- .

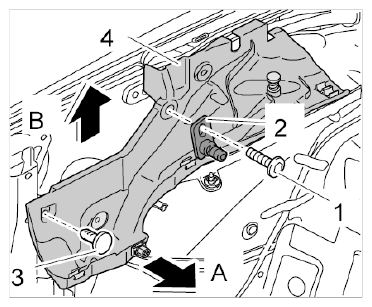

Fig 2: Removing Water Drip Pan
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push out plug -3- .
Disconnect water drip pan -4- at the bottom from water drain tube -arrow A- and remove upwards -arrow B- .
