Installing Rear Hardtop Locking Mechanism

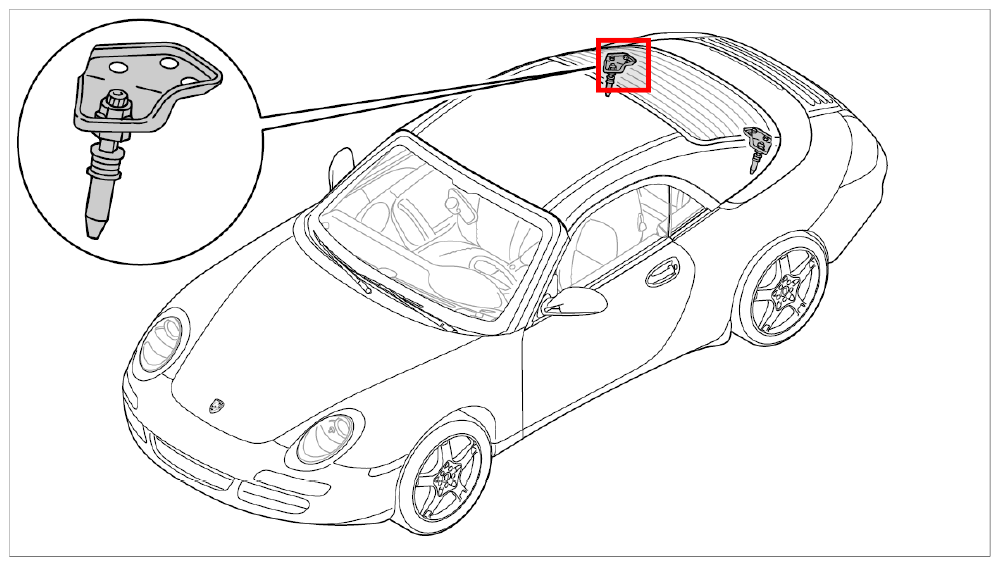

Fig 1: Identifying Rear Hardtop Locking Mechanism Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only for removal of the rear left hardtop locking mechanism.

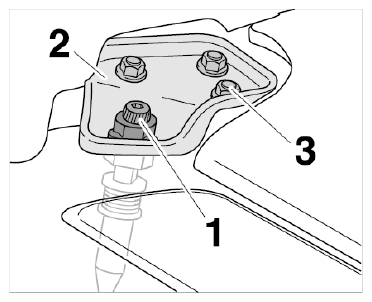

1. Position hardtop locking mechanism -2-  on the hardtop body and screw down with the fastening screws -3-  . Tightening torque → Tightening torque: 10 Nm (7.5 ft. lb.)
   Fig 2: Identifying Rear Hardtop Locking Mechanism

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Screw in fastening screw -1-  for rear hardtop locking mechanism by hand and then tighten to specified tightening torque → Tightening torque: 46 Nm (34 ft. lb.)  .

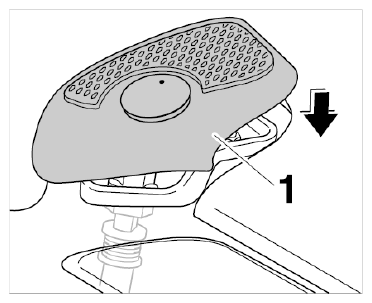

3. Check fastening clips, replacing if necessary. Clip in trim panel -1-  .
   Fig 3: Clipping In Trim Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Only for removal of the rear left hardtop locking mechanism.

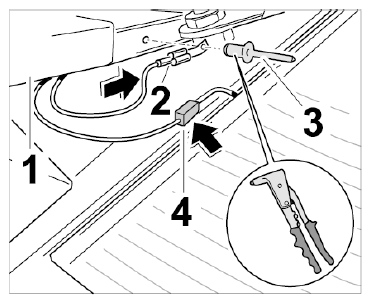

4. Rivet flat plug -2-  of wiring harness with a 3.2 mm tubular rivet -3-  to the hardtop body -1-  and connect the electric plug connection for the rear window heating -4-  .
   Fig 4: Fitting Rear Window Heating Wiring Harness

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Only for removal of the rear left hardtop locking mechanism.

   Information

   • Once a trim panel has been clipped in, the old plastic clips are no longer usable and must always be replaced.

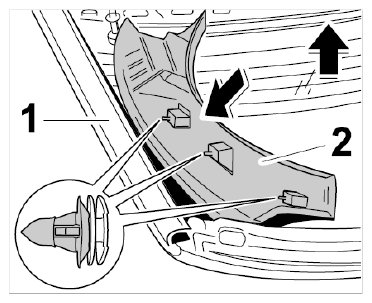

5. Clip in lining -2-  at the sides to the hardtop body -1-  .
   Fig 5: Clipping Sides Lining

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   Only for removal of the rear left hardtop locking mechanism.

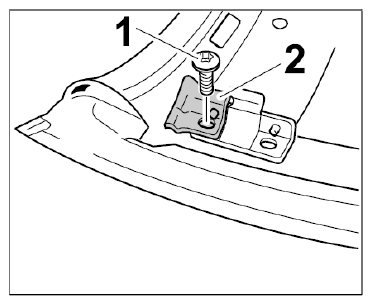

6. Insert support for centering peg -2-  and tighten with fastening screw -1-  . Tightening torque → Tightening torque: 10 Nm (7.5 ft. lb.)
   Fig 6: Installing Centering Peg Support

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
