Removing Convertible-Top Peg Mount

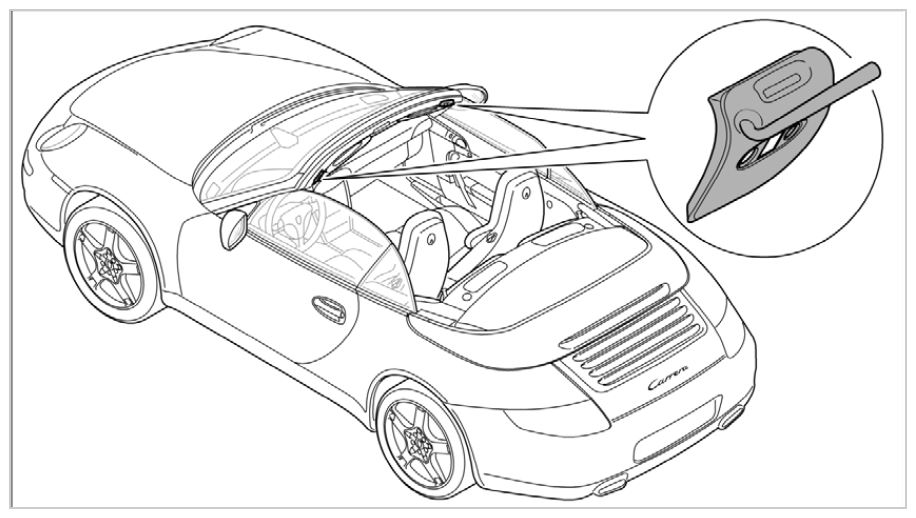

Fig 1: Identifying Convertible-Top Peg Mount Installation Position
G09831860Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unclip cap -1-  in a downward direction with a small screwdriver and remove it -arrow A-  .

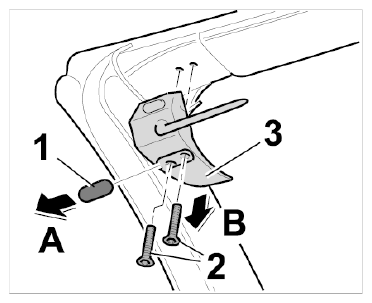

    Fig 2: Removing Convertible-Top Peg Mount
    G09831861Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Unscrew fastening screws -2-  and remove convertible-top peg mount -3-  downwards -arrow B-  .
