Removing Centering Journal

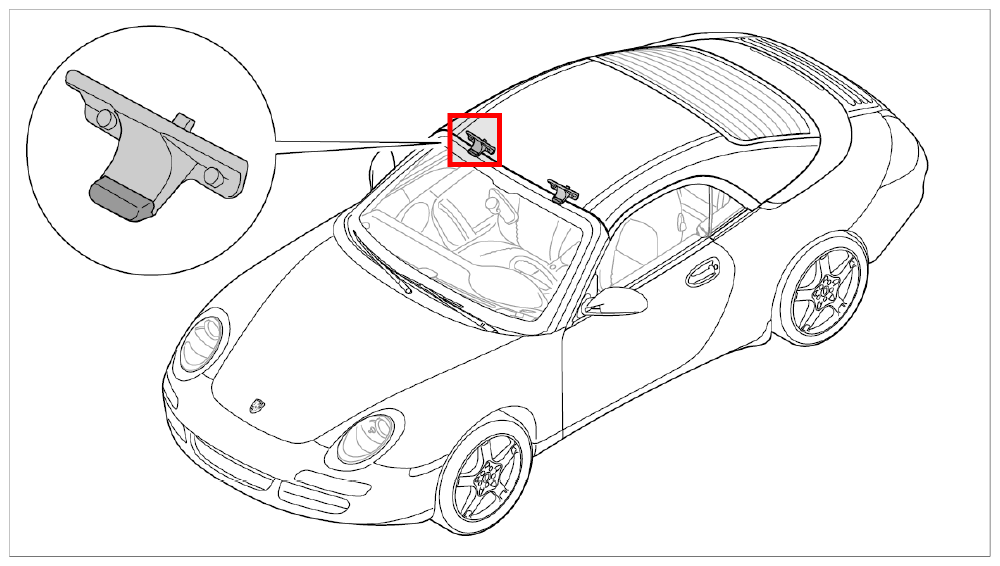

Fig 1: Front Mount Installation Location
G09831856Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws -1-  and remove centering journal -2-  .

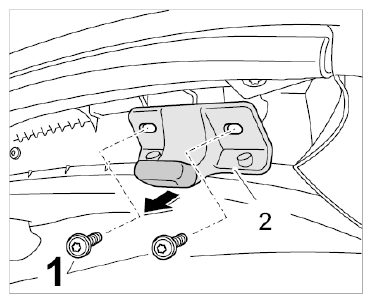

    Fig 2: Removing Centering Journal
    G09831857Courtesy of PORSCHE CARS NORTH AMERICA, INC.
