Installing Convertible-Top Peg Mount
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

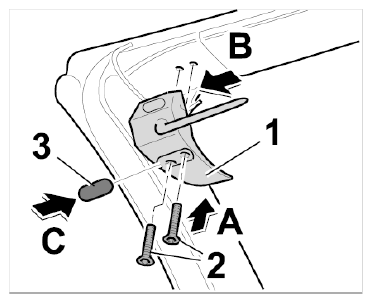

- Place convertible-top peg mount -1-
on windscreen frame from below -arrow A-
, position it correctly and screw down hand-tight using the fastening screws -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

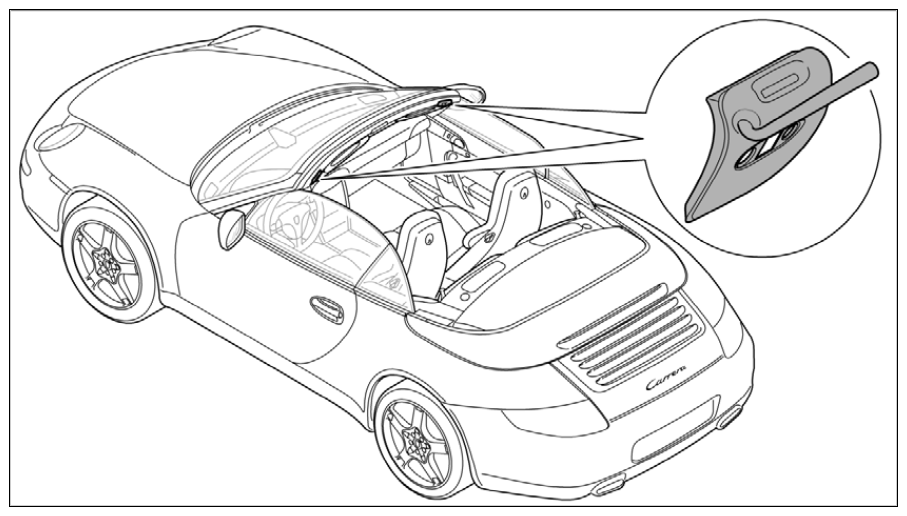

- To position convertible-top peg mount, close convertible top or fit hardtop.
- Move convertible-top peg mount as far as possible outwards (towards the centering journal) -arrow B-
and screw down. Tightening torque → Tightening torque: 10 Nm (7.5 ft. lb.)
- Position cap -3-
from below -arrow C-
and clip into place.
