Installing Centering Journal

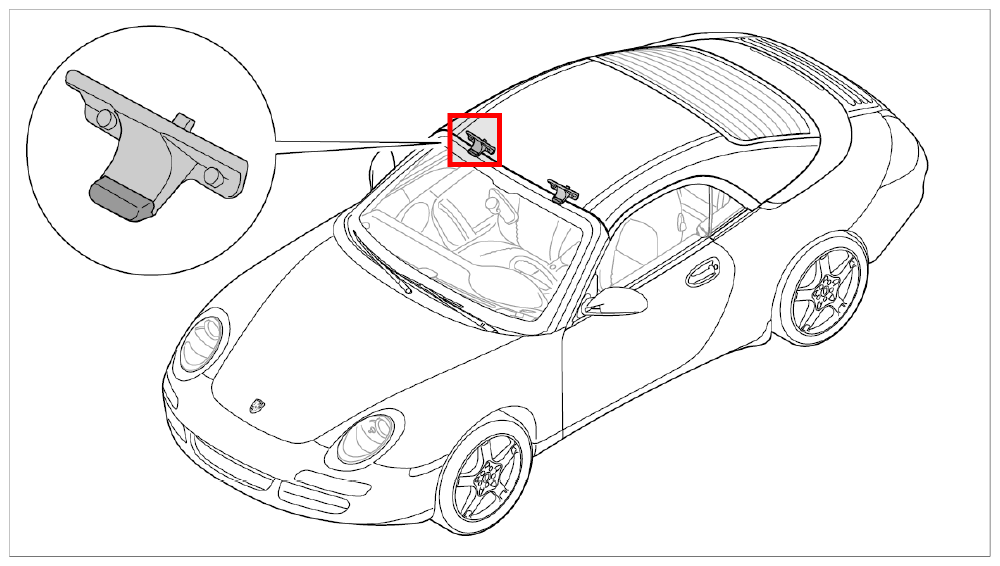

Fig 1: Front Mount Installation Location
G09831862Courtesy of PORSCHE CARS NORTH AMERICA, INC.

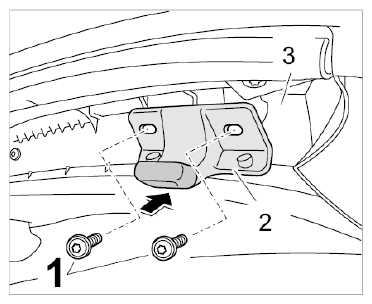

  1. Position centering journal -2-  on convertible top frame -3-  and screw down the fastening screws -1-  . Tightening torque → Tightening torque: 10 Nm (7.5 ft. lb.)
    Fig 2: Installing Centering Journal
    G09831863Courtesy of PORSCHE CARS NORTH AMERICA, INC.
