WM 611019 Removing And Installing Front Convertible-Top Mount (CABRIO Models)
>>
Installing Front Convertible-Top Mount
>>
Installing Centering Journal (Hardtop)
Installing Centering Journal (Hardtop)

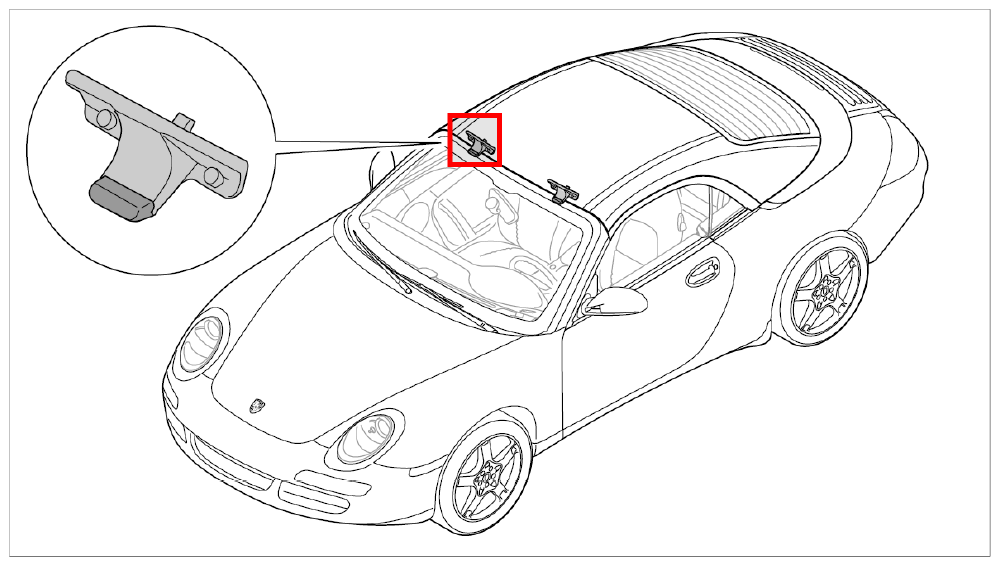

Fig 1: Front Mount Installation Location
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position centering journal
-2-
with support
-2A-
on the hardtop body
-3-
and screw down fastening screws
-1-
. Tightening torque →
Tightening torque: 10 Nm (7.5 ft. lb.)

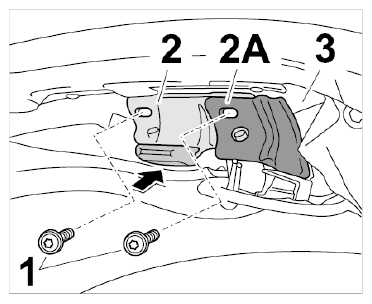

Fig 2: Installing Centering Journal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
