Removing Hood Inner Lining At Sides

  1. Drill out rivets -1-  .

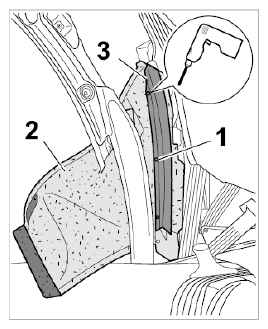

    Fig 1: Removing Hood Inner Lining
    G09831826Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove hood inner lining at the sides -2-  and plastic insert -3-  .
