Installing Hood Inner Lining At Sides

  1. Position the hood inner lining at the sides -1-  and the plastic insert -2-  on the main folding top bow.

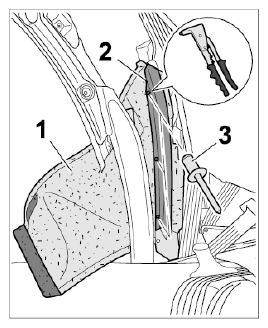

    Fig 1: Installing Hood Inner Lining
    G09831827Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Rivet blind rivets -3-  at the holes provided on the main folding top bow.
