Installing Hood Inner Lining At Rear

Secure hood inner-lining joint to the rear window.

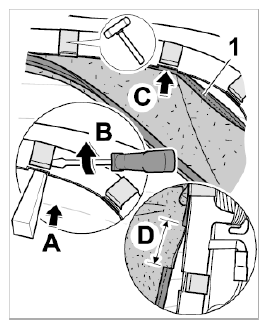

Fig 1: Securing Hood Inner-Lining Joint To Rear Window
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 1.1. Raise the metal clips using a plastic spatula -arrow A- and insert a small screwdriver under the metal clips -arrow B- .
2. 1.2. Insert the joint seal -1- for the hood inner lining under the metal clips -arrow C- .
  Check that the clearance cuts of the hood inner lining -D- are positioned at the electric connection for the rear window.
3. 1.3. Tap in the metal clips using a plastic hammer. Make sure that the metal clips engage in the frame cutouts.
Press the hood inner-lining joint into the groove on the tension bow -arrows- .

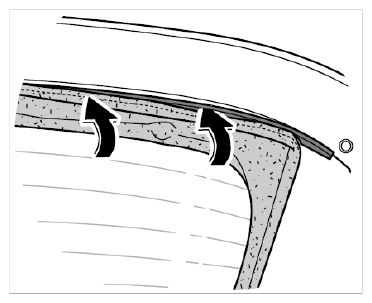

Fig 2: Pressing Hood Inner-Lining Joint
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert brace -1- at the left and right into the textile case on the hood inner lining -2- . First, insert the brace into the tension bow at the rear -arrow A- , then bend it through -arrow B- and guide it forward -arrow C- .

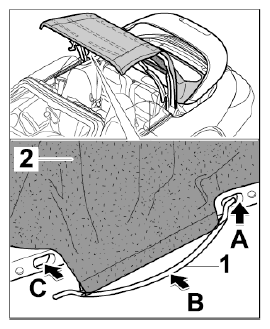

Fig 3: Installing Brace
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull hood covering bracing strap -3- through the cut-out in the hood inner lining and use the fastening screw -2- to secure to the corner bow -1- .

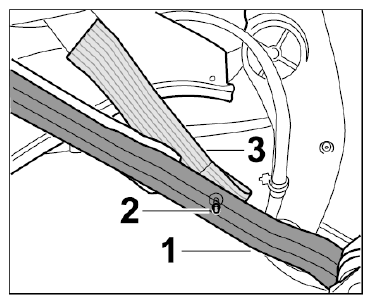

Fig 4: Identifying Hood Covering Bracing Strap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close the Velcro fastener at the left and right on the tension bow -arrow- .

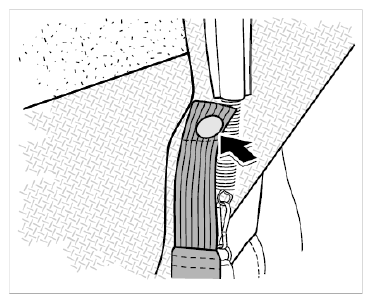

Fig 5: Closing Velcro Fastener
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press on snap fastener at the left and right -arrow- .

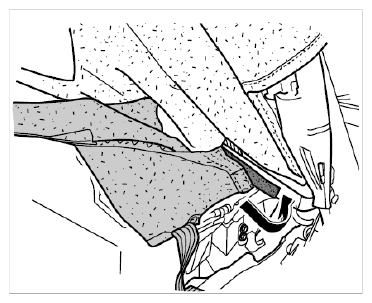

Fig 6: Pressing Snap Fastener
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close the zip -2- between the hood inner lining at the rear -3- and the joint in the hood covering -1- in -direction of arrow- .
Lock the zip using a paper clip -4- .

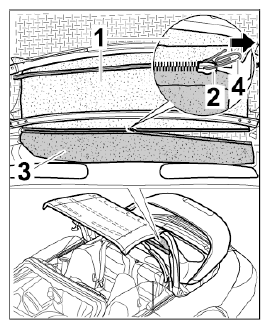

Fig 7: Closing Zip
