Installing Hood Inner Lining At Front

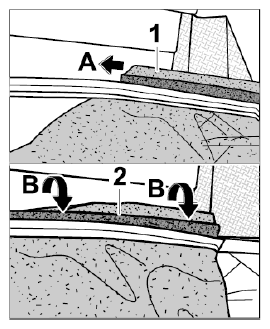

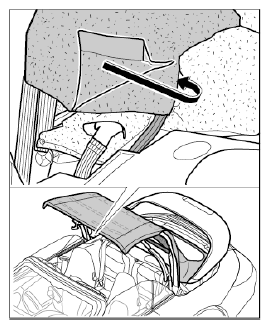

Pull hood inner-lining joint -1- into the front groove on the corner bow -arrow A- and Centre it.

Fig 1: Installing Corner Bow Joint
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit joint strip -2- into the rear groove -arrows B- .

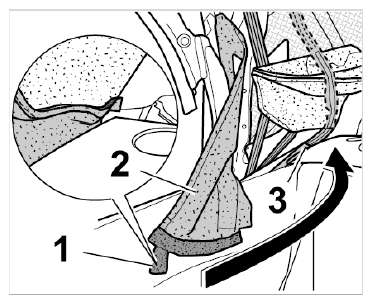

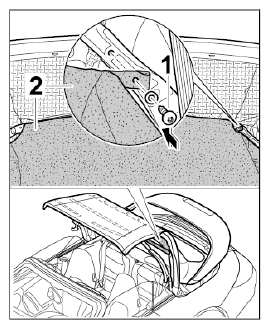

Position the bracing strap -2- at the left and right under the hood inner lining -3- and secure to the main folding top bow with the fastening screw -1- (-arrow- ).

Fig 2: Installing Brace
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull bracing strap -1- at the left and right into the plastic joint on the hood inner lining -2- .

Fig 3: Identifying Bracing Strap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Press Velcro fastener at the left and right of the hood inner lining onto the corner bow -arrow- .

Fig 4: Closing Velcro Fastener
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

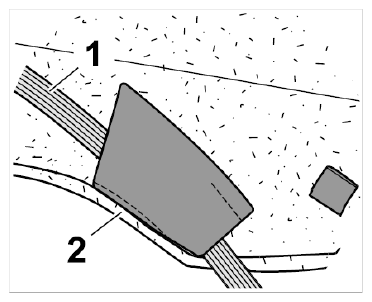

Position hood inner lining bracing strap on the side -2- at the left and right above the tension strap bracing strap -1- . Follow the sequence shown.

Fig 5: Installing Bracing Straps
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

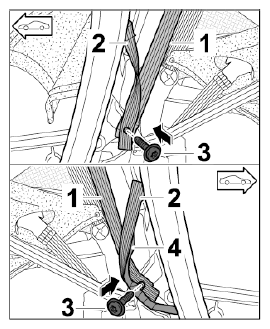

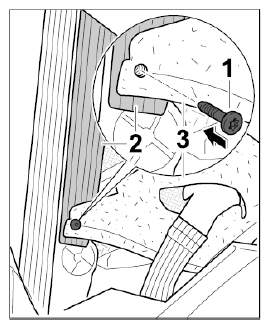

Screw fastening screw -3- and bracing straps to the main folding top bow -arrow- .
The wire harness for the hood -4- is also secured on the left side.

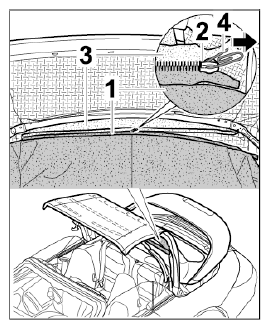

Close the zip -2- between the hood inner lining at the front -1- and the joint in the hood covering -3- in -direction of arrow- .
Lock the zip using a paper clip -4- .

Fig 6: Closing Zip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

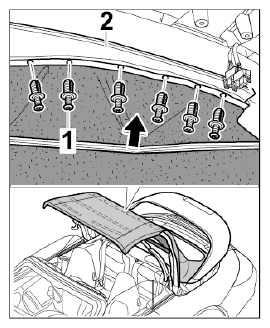

Secure hood inner-lining joint -2- at the left and right with fastening screws -1- (-arrow- ).

Fig 7: Securing Hood Inner-Lining Joint
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Close the Velcro fastener -1- at the left and right between the hood inner lining at the side -2- and the corner bow -3- (-arrow- ).

Fig 8: Closing Velcro Fastener
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position covering strip -2- on the roof frame (2) and press in expanding clip -1- (-arrow- ).

Fig 9: Fitting Roof Frame Hood Inner-Lining Joint
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

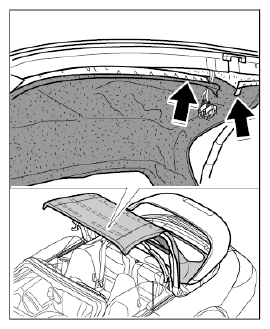

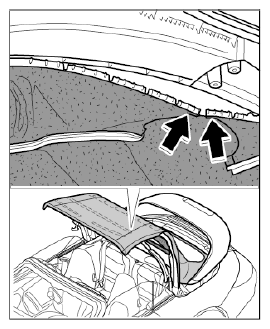

Fit rear sewn-on clamping rail on the roof frame (1) at the left and right -arrows- .

Fig 10: Fitting Rear Clamping Rail
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fit front sewn-on clamping rail on the roof frame (1) at the left and right -arrows- .

Fig 11: Fitting Front Clamping Rail
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

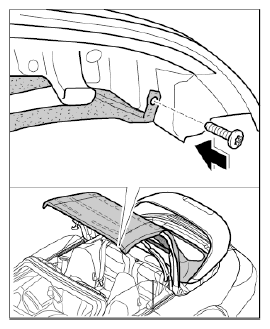

Secure hood inner-lining joint with the fastening screws at the left and right -arrow- .
