Removing Convertible-Top Inner Lining

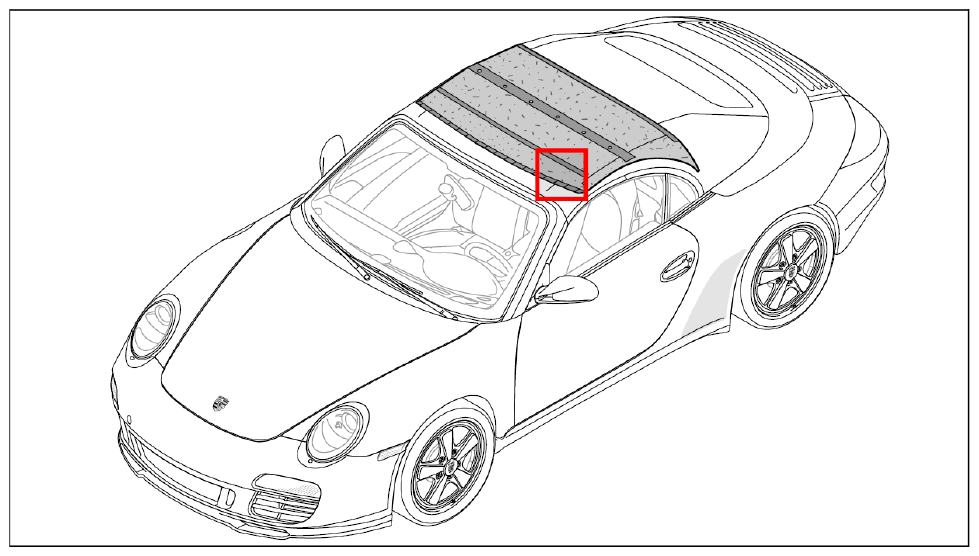

Fig 1: Identifying Convertible-Top Inner Lining Installation Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

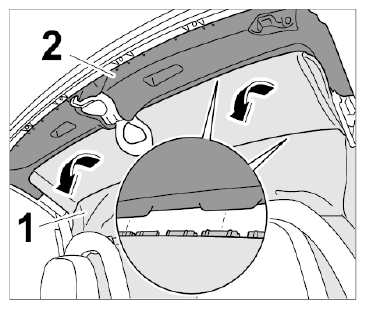

Unclip convertible-top inner lining -1- from the roof frame bar -2- at the front and in the middle, starting at the outside and moving downwards -arrows- .

Fig 2: Disengaging Convertible-Top Inner Lining
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Loosen bracing strap at the left and right.

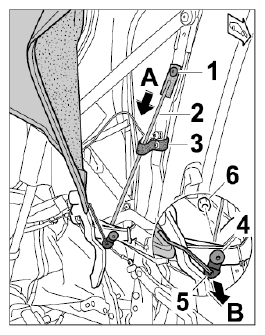

Fig 3: Loosening Bracing Strap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 2.1. Unscrew fastening screw -1- from the bracing strap -2- (-arrow A- ).
2. 2.2. Remove bracing strap -2- from the fastening clip -3- .
3. 2.3. Unscrew fastening screw -4- on the deflector -5- (-arrow B- ) and counter the fastening nut -6- on the back while doing this.
Loosen convertible top rooflining at the left and right.

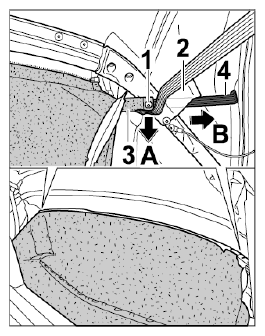

Fig 4: Loosening Convertible Top Rooflining
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
1. 3.1. Undo fastening screw -1- on the guide rail for the main folding top bow -2- (-arrow A- ).
2. 3.2. Loosen the convertible top rooflining fabric plate -3- and convertible top covering bracing strap -4- (-arrow B- ).

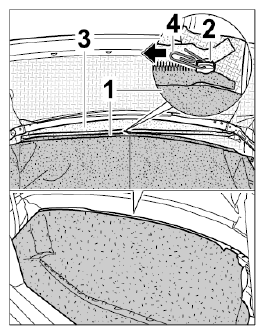

Disconnect convertible-top inner lining close to the main folding top bow -1- by opening the zip -2- in -direction of arrow- and detach it from the convertible top covering -3- .
Release the zip using a paper clip -4- .

Fig 5: Opening Convertible Zip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove convertible-top inner lining.
