Installing Convertible-Top Inner Lining

Lock the zip using a paper clip -4-  .

Fig 1: Closing Zip Fastener

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

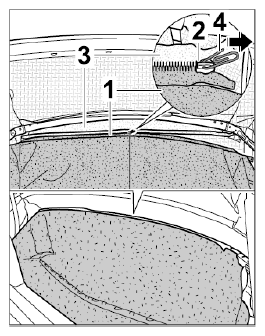

Fig 2: Securing Convertible-Top Inner Lining

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 2.1. Position the convertible top rooflining fabric plate -3-  in front of the guide rail -2-  and position the bracing strap -4-  between the guide rail and the main folding top bow -arrow A-  .
2. 2.2. Tighten the fastening screw -1-  on the main folding top bow -arrow B-  . → Tightening torque: 2 Nm

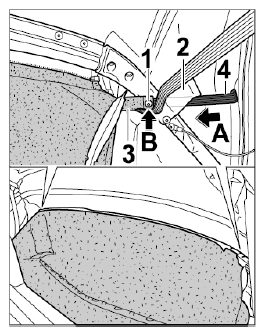

Fig 3: Securing Bracing Strap

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 3.1. Position the deflector -5-  on the corner bow joint -arrow A-  and secure with the fastening screw -4-  and fastening nut -6-  .
2. 3.2. Pull bracing strap -2-  through the fastening clip -3- -arrow B-  .
3. 3.3. Secure the bracing strap -2-  to the C-pillar with the fastening screw -1-  .

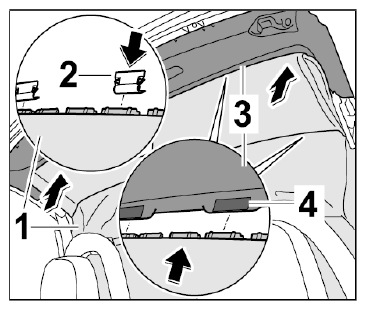

Fig 4: Securing Convertible-Top Inner Lining

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 4.1. Always replace clips -2-  .
2. 4.2. Affix strips of adhesive tape -4-  to the roof frame bar.
3. 4.3. Clip convertible-top inner lining -1-  at the center and front onto the roof frame bar -3-  , starting from the inside and moving upwards.
