Removing Front Lock
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

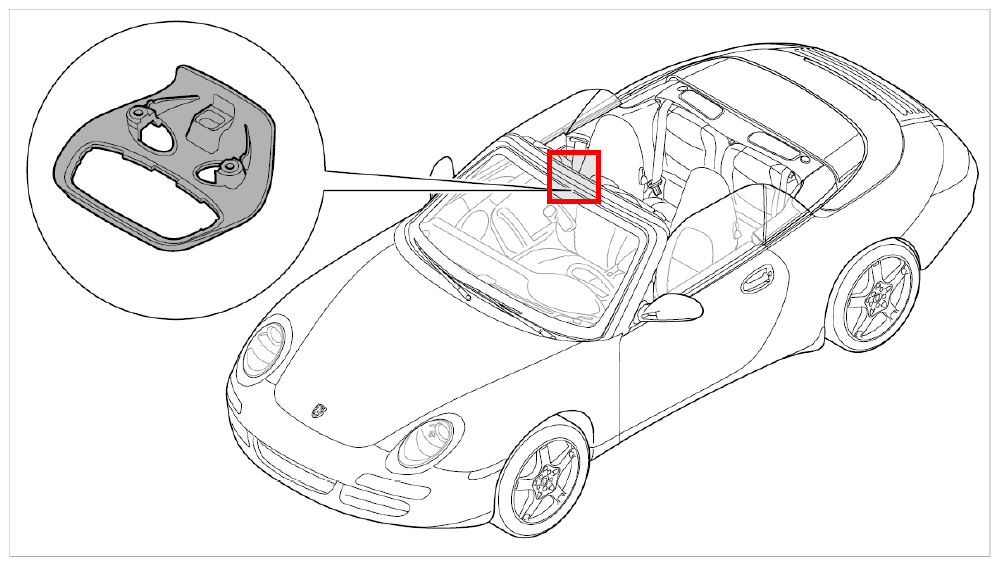

- Release the two fastening screws -1-
and pull the front lock -2-
down and off -arrow-
from the windscreen frame.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Push up the electric connecting lines for the interior light and the control units for garage door opener through the assembly openings on the front lock.

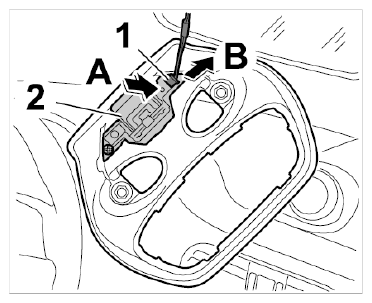

- Release connector -1- -Arrow A-
and remove from roof microswitch -2- -Arrow B-
.
