Installing Front Lock

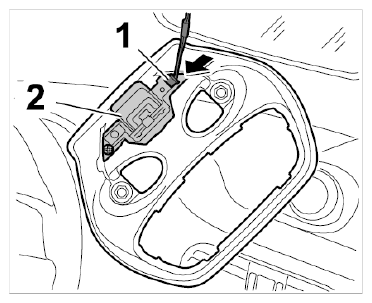

  1. Push on connector -1-  for roof microswitch -2- -arrow-  until it is heard to engage.
    Fig 1: Pushing Microswitch Connector
    G09831804Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Push the electric connecting lines for the interior light and the garage door opener control unit from above through the assembly openings on the front lock.

    Information

    When fitting the front lock make sure the electric connecting lines are laid so that they are not trapped.

  3. Mount front lock -1-  from below -arrow-  on windscreen frame.
    Fig 2: Installing Front Lock
    G09831805Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Tighten front lock with the two fastening screws -2-  . → Tightening torque: 7.5 ft. lb.
