Tools And Materials

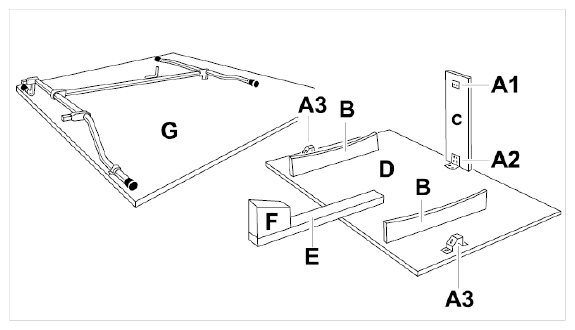

The following fixture is required for assembly work on the outer area:
| Item | Designation | Explanation |
|---|---|---|
| G | Wall support for 911 Carrera Cabriolet hardtop | → "Special tool" |
The following tools and materials are required to construct the fixture for work in the inner area:
| Item | Designation | Explanation |
|---|---|---|
| Drill | ||
| Drill bit 6 mm | ||
| Drill bit 3 mm | ||
| Sabre saw | ||
| Measuring tape | ||
| B | Support cheek (2x) | Multiplex plate 25 mm thick, 600 x 120 mm |
| C | Swivel arm 1x) | Multiplex plate 25 mm thick, 550 x 200 mm |
| D | Base plate (1x) | Wood-core plywood 19 mm thick, 1500 x 900 mm |
| E | Horizontal banner arm (1x) | Hardwood block 30 mm thick, 650 x 50 mm |
| F | Base (1x) | Hardwood block 50 mm thick, 90 x 140 x 190 mm |
| All materials listed are commercially available. | ||
| Mounting component 9620 | → "Special tool " | |
| Set of fittings includes: | ||
| A1 | Retaining bracket (1x) | |
| A2 | Hinge (1x) | |
| A3 | Base (2x) | |
| A4 | Straight pin 6 M6 x 40 (6x) | |
| A5 | Countersunk screw 4.5 x 20 (8x) | |
| A6 | Countersunk screw 6 x 20 (2x) | |
| A7 | Countersunk screw 6 x 20 with disc (4x) | |
| A8 | Countersunk screw 6 x 60 (2x) | |
| A9 | Countersunk screw 6 x 50 (3x) | |
