Disassembling Hardtop
- Detach cover strips and roof strip clips.
- 1.1. Lift up the cover strip -1-
at left and right using a plastic spatula and pull it off. The roof strip clips are destroyed on removal.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Place outer roof panel of hardtop on the assembly fixture.
- Unclip linings.

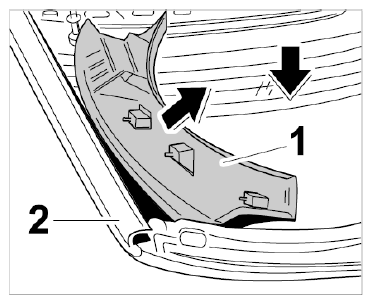

- 3.1. Unclip linings -1-
front and rear from hardtop -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Detach seal at sides of roof frame.

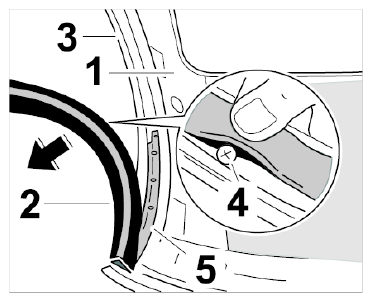

- 4.1. The seal at the sides of the roof frame -1-
is in two parts. Pull the upper seal -2-
out of the profile of the retaining strip -3-
.
- 4.2. Unscrew fastening screws -4-
from the retaining strip -3-
.
- 4.3. Remove the seal below together with the retaining strip -5-
from the roof frame -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Loosen and detach retaining strip and roof frame seal.
- 5.1. Unscrew tapping screws -1-
from retaining strip -2-
.
- 5.2. Unscrew pan-head screw -3-
from the roof frame seal, detach the seal at the corners and remove it.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Pull off sealing rubber.

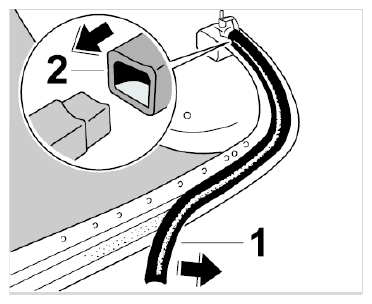

- 6.1. Pull off the surrounding sealing rubber -1-
to the rear and pull it out at the ends from the roof frame seal -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Detach roof liner at front.

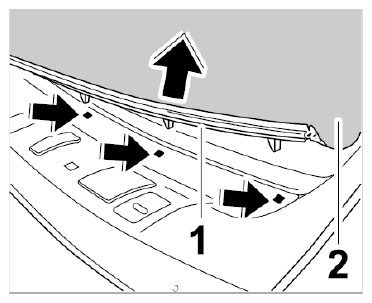

- 7.1. Lift front retaining strip -1-
of roof liner -2-
with a plastic spatula and pull it off.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Detach roof liner at sides.
- 8.1. Lift up the roof liner -1-
on the left and right sides with a plastic spatula and disengage from the sheetmetal clips -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Detach roof liner at rear and transverse struts.

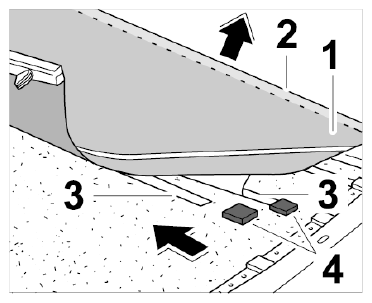

- 9.1. Pull plastic strip -2-
of roof liner to the rear and detach it -1-
.
- 9.2. Pull out transverse struts -3-
with plastic sleeves -4-
and remove the roof liner -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Loosen sound absorber from the hardtop body.

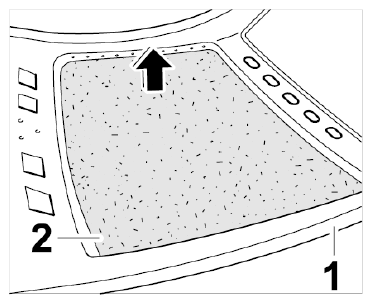

- 10.1. Loosen the sound absorber -2-
of the hardtop body -1-
using a spatula.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Remove foam strips.

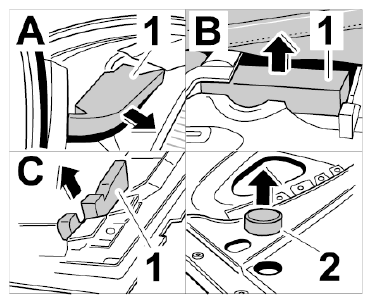

- 11.1. Carefully pull off foam strips -1-
on B-pillar -A-
, at rear of roof -B-
and at the centering pegs at front -C-
and the foam pads -2-
on the left and right.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Remove locking lever.

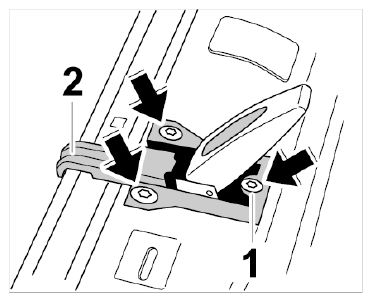

- 12.1. Unscrew and remove fastening screws -1-
from the locking lever -2-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Press expander nuts out of the hardtop body.

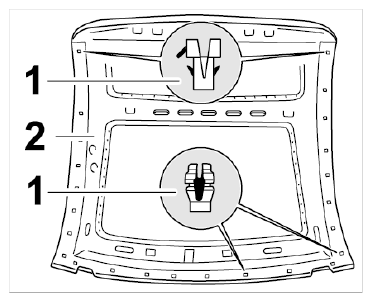

- 13.1. Press expander nuts -1-
out of the hardtop body -2-
at the sides and top.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
