Assembling Hardtop

Information

• Please observe the colored installation position of the expander nuts!
• 1A = yellow
• 1B = white
• 1C = green
• 2A = red
• 2B = white

1. 2.1. Beginning in the direction of travel going left
2. 2.2. One red -2A-  expander nut
3. 2.3. Three yellow -1A-  expander nuts
4. 2.4. One green -1C-  expander nut
5. 2.5. One white -1B-  expander nut
6. 2.6. Press three green -1C-  expander nuts into the hardtop body.
7. 2.7. Beginning in the direction of travel going right
8. 2.8. One white -2B-  expander nut
9. 2.9. Three yellow -1A-  expander nuts
10. 2.10. One green -1C-  expander nut
11. 2.11. One white -1B-  expander nut
12. 2.12. Press three green -1C-  expander nuts into the hardtop body.
13. 2.13. Press the expander nuts at the front -1B-  into the hardtop body in the direction of travel.

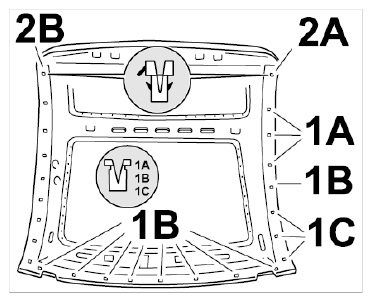

    Fig 1: Identifying Hardtop Body Expander Nuts

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 3.1. Stick a felt strip -2-  approx. 2 cm wide along the window aperture on the rivet joints of the hardtop body -1-  .
   Fig 2: Locating Felt Strips On Window Aperture

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

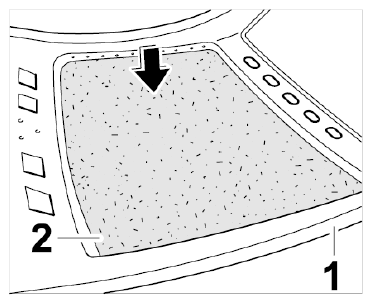

1. 4.1. Position the self-adhesive sound absorber -2-  in the hardtop body -1-  and press firmly into place.
   Fig 3: Locating Hardtop Body Sound Absorber

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

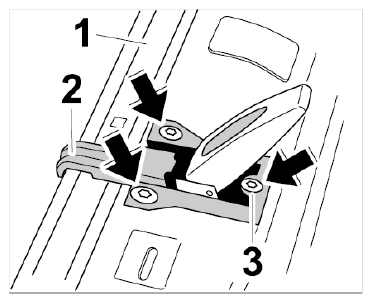

1. 5.1. Position locking lever -2-  on hardtop body -1-  and secure with fastening screws -3-  . Tightening torque → Tightening torque: 10 Nm (7.5 ft. lb.)
   Fig 4: Fitting Locking Lever

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

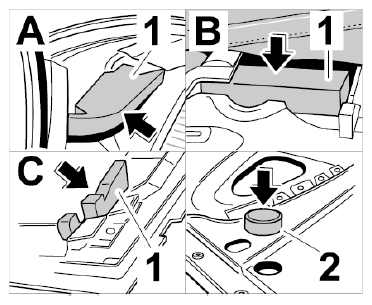

1. 6.1. Position foam strips -1-  on B-pillar -A-  , at rear of roof -B-  and at centering pegs at front -C-  and the foam pads -2-  on the left and right. Press on firmly.
   Fig 5: Positioning Foam Strips And Foam Pads

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

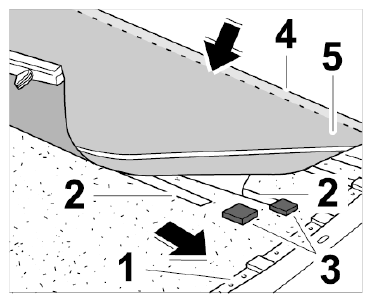

1. 7.1. Insert transverse struts -2-  with plastic sleeves -3-  into the hardtop body -3-  .
2. 7.2. Pull back plastic strip -4-  of roof liner -5-  and engage in groove of hardtop body -1-  .
   Fig 6: Engaging Roof Liner At Rear And Transverse Struts

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• If the hardtop body is new, the sheetmetal clips on the left and right must be bent over to the outside using a plastic hammer.

1. 8.1. Engage roof liner -1-  at the left and right sides in the sheetmetal clips -2-  .
   Fig 7: Engaging Roof Liner At Sides

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

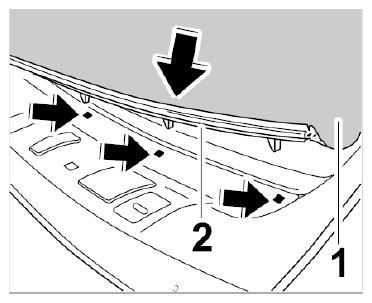

1. 9.1. Position front retaining strip -2-  of roof liner -1-  and clip it in.
   Fig 8: Fitting Roof Liner At Front

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

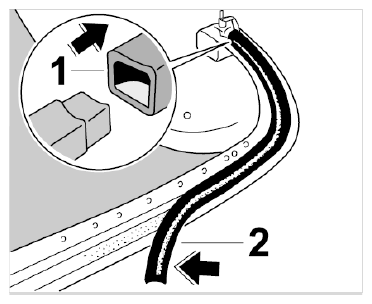

1. 10.1. Insert self-adhesive sealing rubber -2-  at the ends of the roof frame seal -1-  .
2. 10.2. Remove protective film of the sealing rubber and press firmly into place at the rear on all sides.
   Fig 9: Fitting Rubber Seal

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

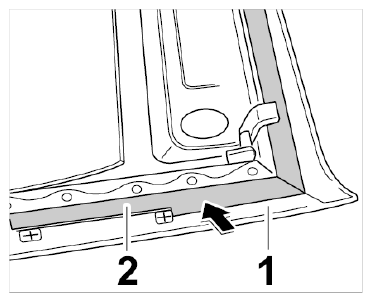

1. 11.1. Stick a 2 cm wide strip of Nitto tape -2-  on the hardtop body -1-  at the front left and right.
   Fig 10: Affixing Nito Tape To Hardtop Body

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 12.1. Engage roof frame seal in the hardtop body at the corners and fasten with the fastening screw -1-  . Tightening torque → Tightening torque: 10 Nm (7.5 ft. lb.)
2. 12.2. Position retaining strip -2-  and screw down using the fastening screws -3-  .
   Fig 11: Fitting Roof Frame Seal And Retaining Strip

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

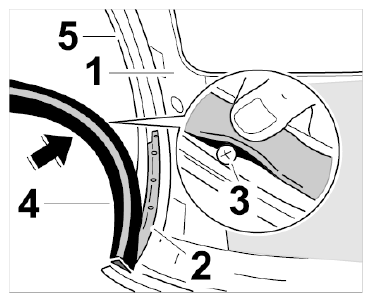

1. 13.1. The seal at the sides of the roof frame -1-  is in two parts. Position lower seal with retaining strip -2-  on roof frame -1-  and fasten with fastening screws -3-  .
2. 13.2. Press upper seal -4-  into the profile of the retaining strip -5-  .
   Fig 12: Fitting Roof Frame Sides Seal

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• Once a trim panel has been clipped in, the old plastic clips are no longer usable and must always be replaced.

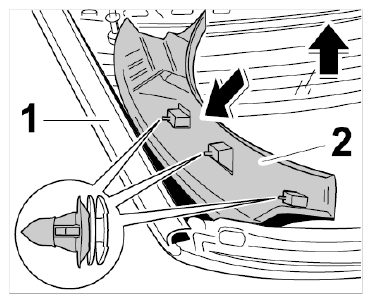

1. 14.1. Clip linings -2-  front and rear into hardtop -1-  .
   Fig 13: Clipping Lining

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. 15.1. Fit roof strip clips -3-  .
2. 15.2. Fit cover strip seal on the cover strip -2-  .
3. 15.3. Position cover strips on the hardtop body -1-  and press into the roof strip clips.
   Fig 14: Clipping In Roof Strip Clips And Cover Strips

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
