Diagram Of Convertible Top

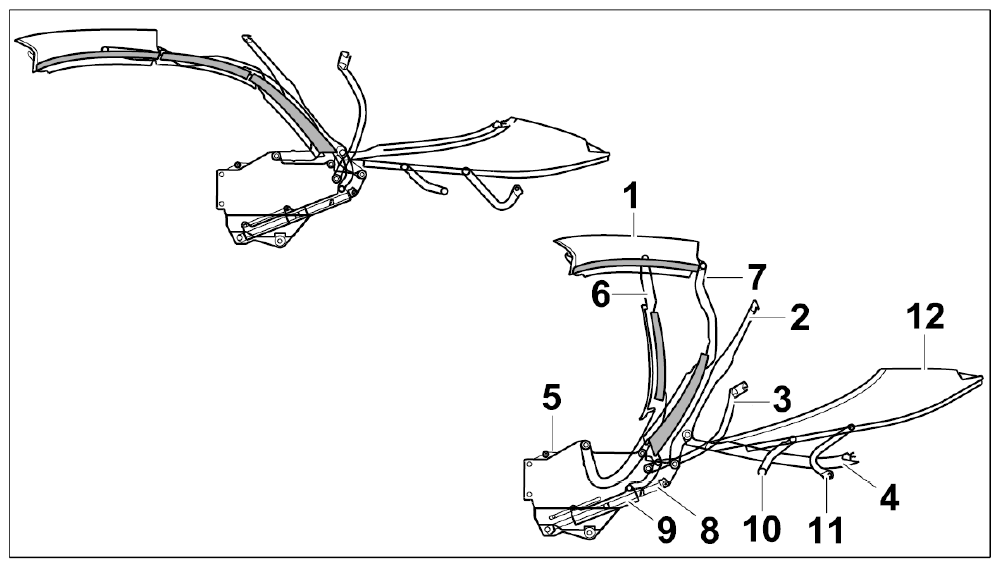

Fig 1: Identifying Convertible Top Components
G09831742Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Roof frame 1
  2. Main bow
  3. Corner bow
  4. Tension bow
  5. Convertible-top support
  6. Roof frame 2
  7. Roof frame
  8. Lever
  9. Hydraulic cylinder (drive)
  10. Front hinge lever
  11. Rear hinge lever
  12. Convertible-top compartment lid
