Move Convertible Top To Service Position

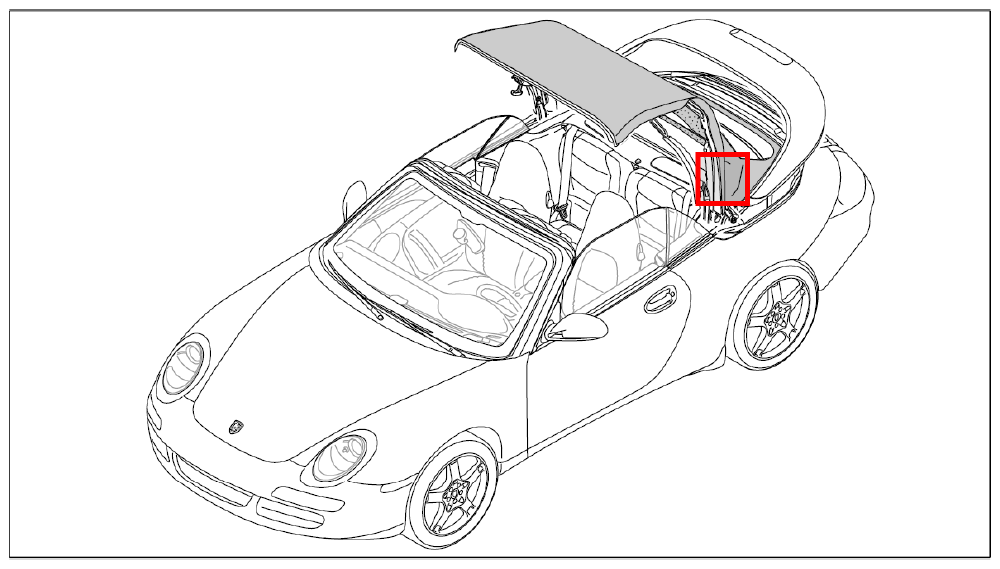

Fig 1: Identifying Convertible Top Service Position

G09831738

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Switch on ignition.
Move convertible top -1- to the rear electrically until the convertible-top compartment lid -2- has reached the rear end position. Move convertible top -1- forward electrically until the convertible-top compartment lid -2- moves forward, then interrupt closing operation.

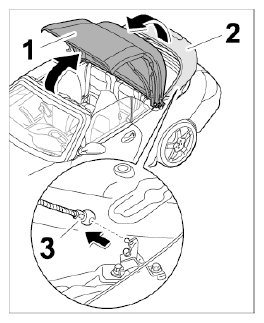

Fig 2: Moving Convertible Top To Service Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
NOTE:
Operation of the hood in service position
- Risk of damage to hood frame and rear window
→ Do not move the hood to the "Close" position by electrical means when in service position.
Disengage left and right tension cables -3- and fold up the tension bow.
Switch off the ignition.
