Ending Convertible Top Service Position

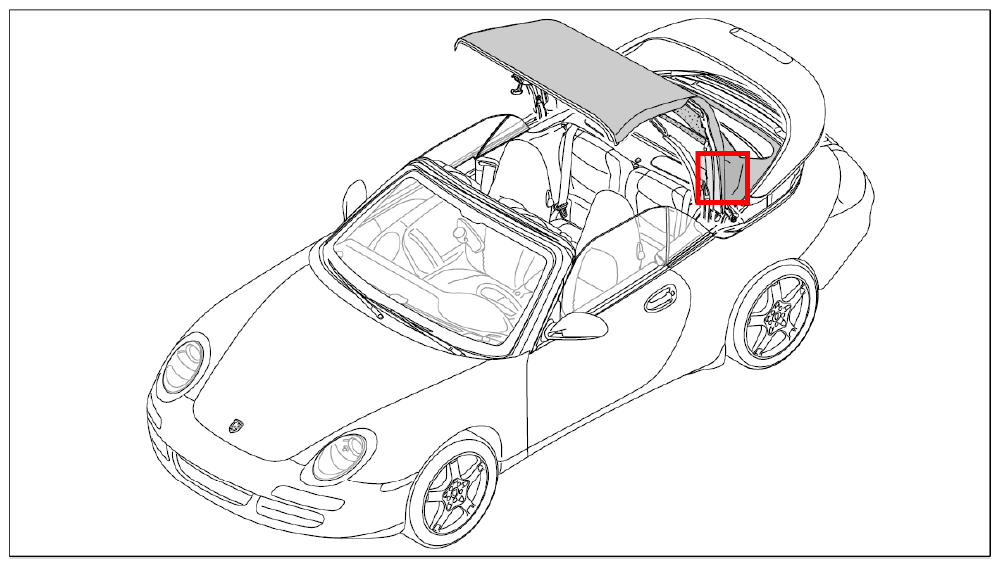

Fig 1: Identifying Convertible Top Service Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fold down tension bow and press ball socket of the left and right tension cables -3- into the ball head of the adjusting element.

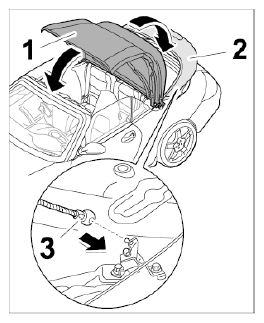

Fig 2: Adjusting Convertible Top Service Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Switch on ignition and move convertible top -1- electrically to its original position.
Switch off the ignition.
