Preliminary Work

  1. Removing rear wall trim panel → WM 703119 REMOVING AND INSTALLING REAR WALL TRIM PANEL - chapter on "Removing"
  2. Open hydraulic valve of the hydraulic pump. → 618419 REMOVING AND INSTALLING HYDRAULIC PUMP  - chapter on "Information"
  3. Remove cover.
    1. 3.1. Pull off cover from convertible top lock.
      Fig 1: Removing Convertible Top Cover
      G09831732Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Move locking hook to end position.
    1. 4.1. Insert the Allen key -1-  into the convertible top lock -A-  and move in the direction of the arrow "Open" (inscription on convertible-top lock) until the locking hook is in the extended end position (perceptible stop).

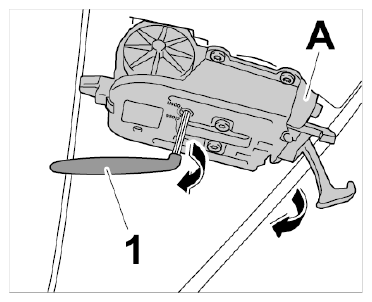

      Fig 2: Locking Hook To Extended End Position
      G09831733Courtesy of PORSCHE CARS NORTH AMERICA, INC.
