Repairing Convertible-Top Compartment Lid Drive

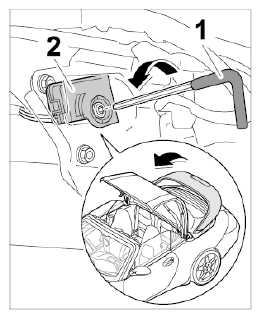

Open convertible-top compartment lid.
1. 1.1. Insert Allen key (tool kit) -1- into the drive axle -2- and turn it anti-clockwise until the convertible-top compartment lid -inset- is fully open (perceptible stop).

  Fig 1: Opening Convertible-Top Compartment Lid
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

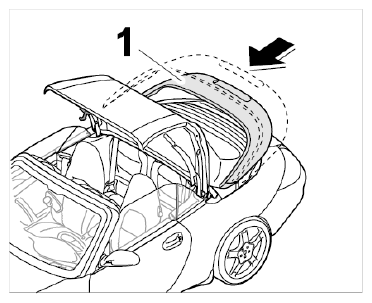

Close convertible-top compartment lid.
1. 2.1. Grasp convertible-top compartment lid -1- above the brake light and push forward until it is closed.

  Fig 2: Closing Convertible-Top Compartment Lid
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

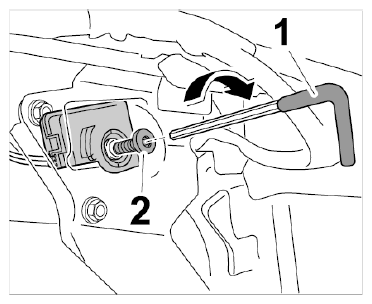

Loosen hexagon socket head bolt.
1. 3.1. Turn Allen key (tool kit) -1- clockwise until the hexagon socket head bolt -2- (left-hand thread) is unscrewed.

  Fig 3: Loosening Hexagon Socket Head Bolt
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

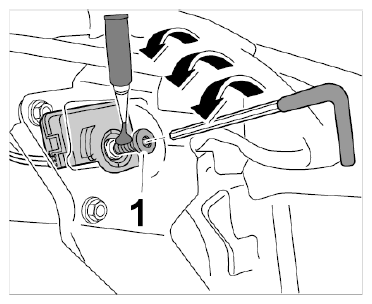

Bond in hexagon socket head bolt.
1. 4.1. Coat hexagon socket head bolt -1- with medium-strength screw-locking compound and screw it in by three turns (left-hand thread).

  Fig 4: Tightening Hexagon Socket Head Bolt
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
