Removing Convertible Top
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

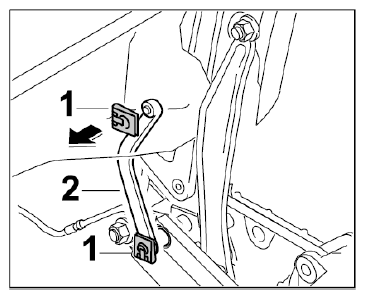

- Press out both retaining clips 1
from lever 2
using the assembly tool for pin circlips and remove lever. → 610119 REMOVING AND INSTALLING CONVERTIBLE TOP - chapter on "Tools and materials"
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

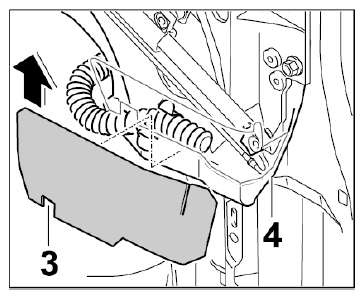

- Pull protection plate 3
upwards out of the clip in the water drip pan 4
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

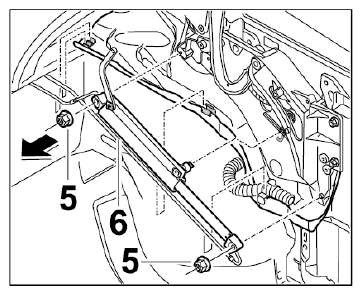

- Unscrew fastening nut 5
and remove hydraulic cylinder 6
together with lever.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

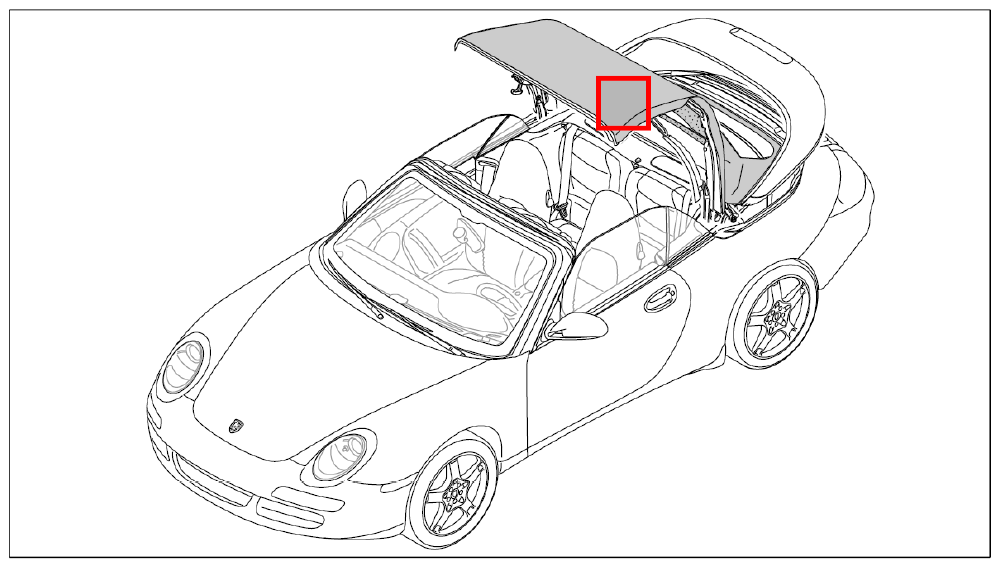

- Unscrew fastening screws 7
from the convertible top support 8
and fastening nut 9
from the rear assembly aid.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

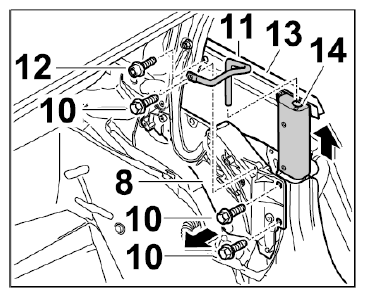

- Unscrew and remove fastening screws 10
from the convertible-top support 8
and the deflection fitting 11
. Unscrew rear fastening screw 12
from the convertible-top support and pull the rear window inner seal 13
up and out together with the mounting for the belt guide section 14
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Disconnect electric plug connection 15
of potentiometer at convertible-top support.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
