Installing Convertible Top

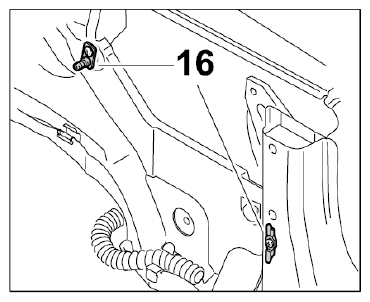

Ensure assembly aid 16 is fitted properly. The rear assembly aid must be recalibrated if it has been removed.

Fig 1: Identifying Convertible Top Assembly Aids
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

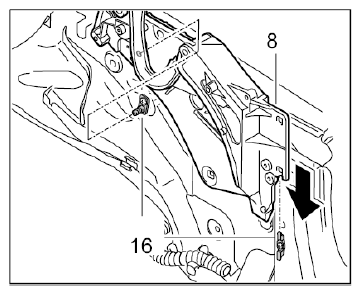

Position convertible-top supports 8 in the assembly aids 16 and place the convertible-top pegs of roof frame 1 into the convertible-top peg housing in the cowl-panel frame.

Fig 2: Positioning Vehicle Convertible Top
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

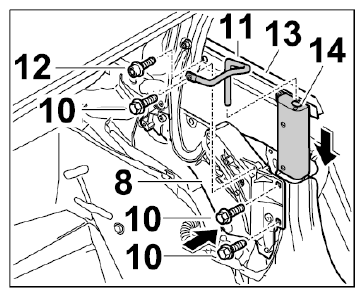

Insert rear window inner seal 13 together with the belt guide section 14 and tighten fastening screw 12 on the convertible-top support. Push the deflection lever 11 into the belt guide section 14 , position the belt on the deflection lever and screw down with the fastening screws 10 .

Fig 3: Installing Rear Window Inner Seal
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

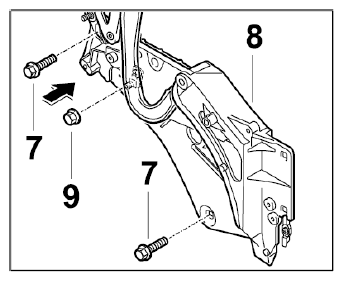

Screw down the convertible-top support 8 on the left and right with the fastening screws 7 and the fastening nut 9 . → Tightening torque: 50 Nm (37 ft. lb.) → Tightening torque: 23 Nm (17 ft. lb.)

Fig 4: Installing Convertible Top To Inner Side Section
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect the electric plug connection 15 between the potentiometer on the convertible-top support and the microswitch of the convertible-top lock.

Fig 5: Connecting Electric Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position hydraulic cylinder 6 together with lever on the convertible-top support. Insert potentiometer fork into the pins of the hydraulic housing (on left side only).

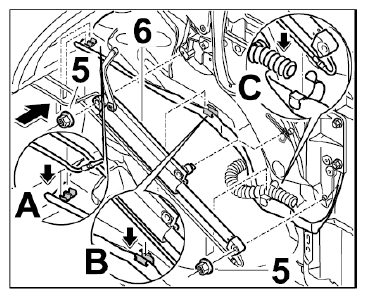

Lay hydraulic line Fig 6 in the clip under the water drain hose. Press hydraulic lines into the clips in Fig 6 and Fig 6. Tighten fastening nuts 5 . → Tightening torque: 17 Nm (13 ft. lb.) +/- 2 Nm (+/-1.5 ft. lb.)

Fig 6: Installing Hydraulic Cylinder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

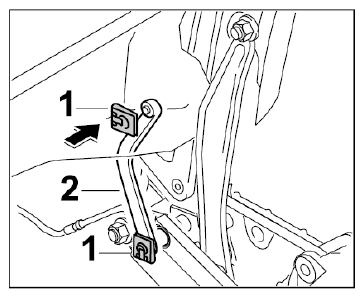

Secure lever 2 with the retaining clip 1 .

Fig 7: Installing Convertible Top Lever
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

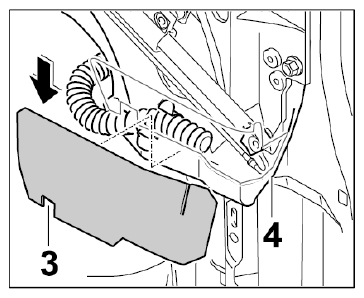

Insert the protection plate 3 in the clip of the water drip pan 4 .

Fig 8: Installing Protection Plate
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
