Adjusting End Setting For Convertible-Top Resting Position

With the convertible top open, the corner bow rests on the adjusting piece in the water drip pan. The adjusting piece can be vertically adjusted by approx. 30 mm  by screwing the adjusting piece in or out.

Adjustment procedure: Adjust height at the adjusting piece so that the convertible-top compartment lid can still close freely.

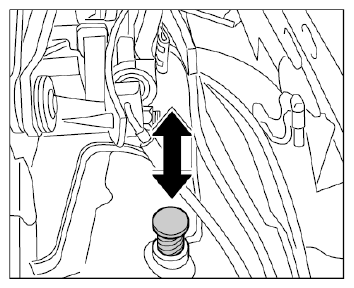

Fig 1: Adjusting Convertible-Top Resting Position End Setting

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
