Home >> Porsche >> 2011 >> 911 Speedster >> Repair and Diagnosis >> Body & Frame >> Seats >> 74 - Seat UPHOLSTERIES, Cover -- CARRERA (997) >> WM 742019 Removing And Installing Cover For Front Middle Backrest (Folding Sports Bucket Seat) (Except 911 "Sport Classic", 911 Turbo S Coupe "Ed. 918 SPYDER", 911 CARRERA 4 GTS, 911 Turbo S CABRIO "Ed. 918 SPYDER", 911 CARRERA 4 GTS CABRIO, 911 Gt3 RS 4.0) >> Installing Cover For Front Middle Backrest

Installing Cover For Front Middle Backrest

  1. Position cover -1-  on the backrest -3-  (-arrow-  ) and straighten it. Press on Velcro strips -2-  .

    Be careful with the seams between the backrest cover and middle backrest cover -inset-  .

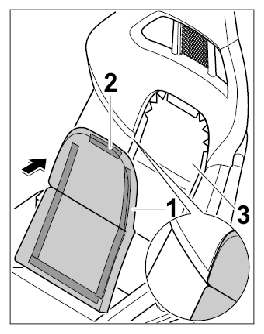

    Fig 1: Installing Cover
    G09830110Courtesy of PORSCHE CARS NORTH AMERICA, INC.
