Removing Cover For Front Middle Backrest

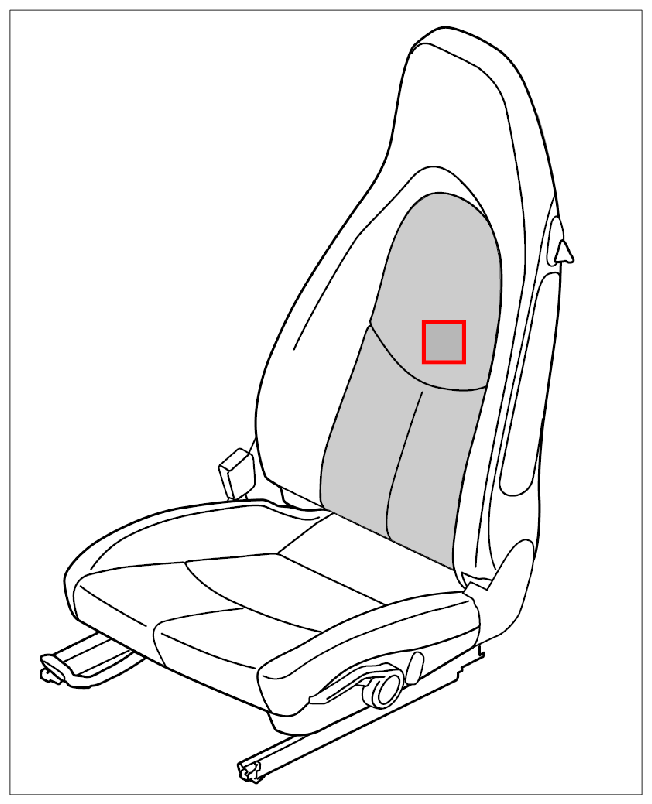

Fig 1: Identifying Cover For Front Middle Backrest Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

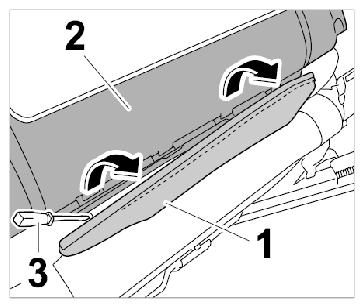

Press cover for backrest -1- carefully out of the backrest shell -2- using a screwdriver -3- .

Fig 2: Loosening Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

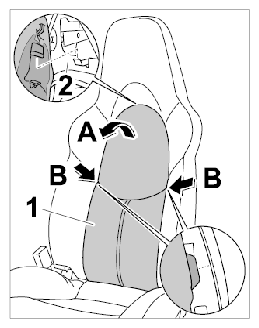

Insert your hand into the top of the backrest cover -1- and disengage it by pulling it up out of the backrest frame -2- (-arrow A- ). Then press cover for backrest together slightly in the middle -arrows B- and pull forwards and out.

Fig 3: Removing Cover For Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only for vehicles with heated seats.

Information

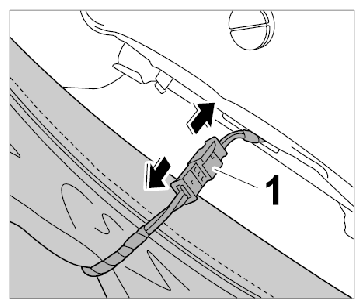

Disconnect electric plug connection for backrest seat heating -1- .

Fig 4: Disconnecting Plug Connection
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
