Installing Cover For Front Middle Backrest

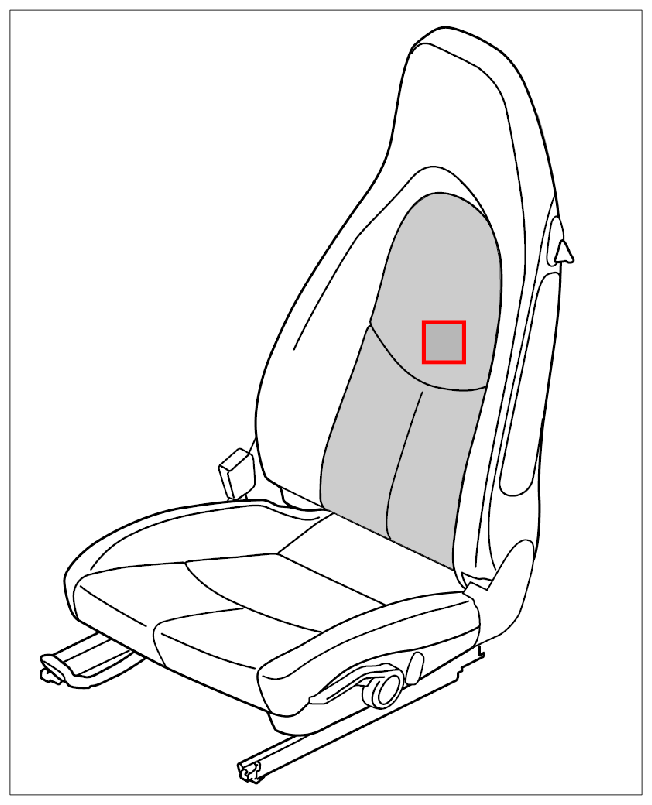

Fig 1: Identifying Cover For Front Middle Backrest Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

Only for vehicles with heated seats.

Information

Only for vehicles with heated seats.

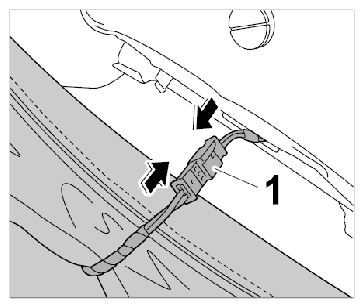

1. Connect electric plug connection for backrest seat heating -1-  .
   Fig 2: Connecting Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

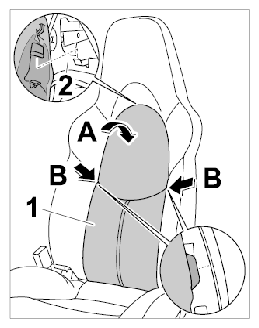

2. Engage cover for backrest -1-  in the backrest frame -2-  at the top -arrow A-  .
3. Press in cover for backrest -1-  in the middle -arrows B-  until the locking tabs engage -inset-  .
Fig 3: Installing Cover For Backrest
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

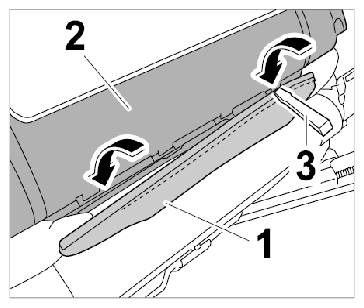

4. Press cover for backrest -1-  into the backrest shell -2-  at the bottom using a plastic wedge -3-  .
   Fig 4: Securing Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
