Installing Cover For Front Seat

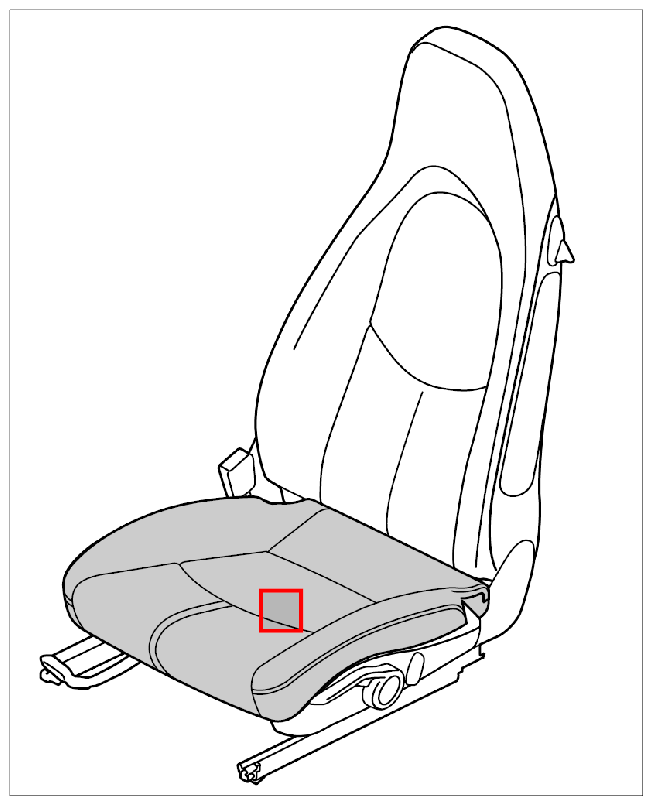

Fig 1: Identifying Cover For Front Seat Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Place cover -2- on the padding and align with the contour of the padding.
Information
- Fasten cover to the padding, starting from the inside.
- Do this in the following sequence: rear, front.

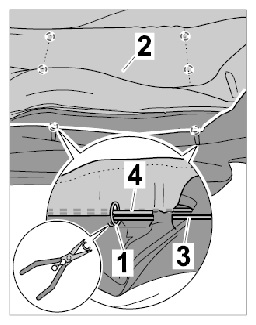

Use the cushion clip pliers Nr.130 and the cushion clips -1- to connect the integrated metal struts of the padding -3- with the metal struts of the cover strips -4- .

Fig 2: Aligning Contour Cover Of Padding

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

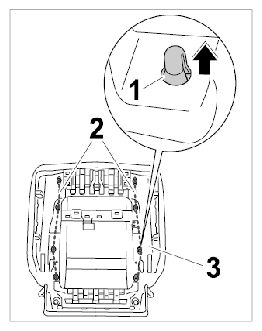

Check fastening clip -1- , and replace if necessary.
Position cover strips right and left -2- at the cut-outs provided to the padding and clip into the seat frame -3- .

Fig 3: Clipping In Cover Strips

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fit cover over the padding without creases.

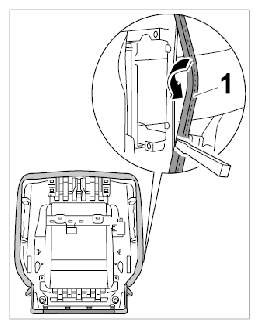

Fit cover piping -1- all around the seat frame with a plastic wedge.

Fig 4: Fitting Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

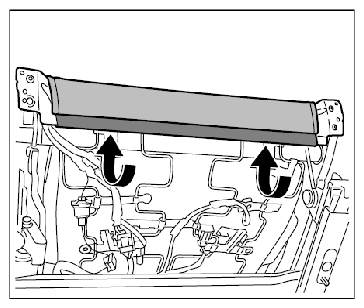

Fit cover piping at the rear on the seat frame using a plastic wedge -arrows- .

Fig 5: Fitting Cover At Rear
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
