Removing Control Unit For Memory Seat Adjustment

NOTE: Voltage drop
  • Risk of irreparable damage to control unit
  • Risk of damage to control unit
  • Fault entries in the control unit
  • Coding in the control unit is aborted
  • Malfunctions in control unit, even during programming

→ Prior to disconnecting the control unit, switch off ignition and remove ignition key.

→ Ensure that the power supply is not interrupted during programming.

→ Connect a battery charger with a current rating of at least → Nominal value: 40 A  to the vehicle battery.

Information

If the control unit must be replaced, first read out the values  using the PIWIS Tester 9718  .

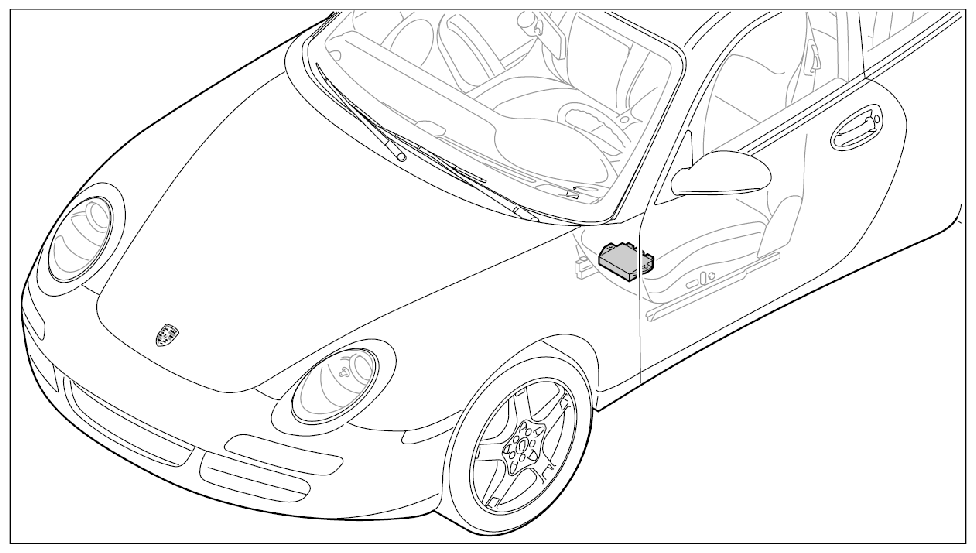

Fig 1: Identifying Installation Position Shown On 911
G09829806Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew the two fastening screws -1-  .

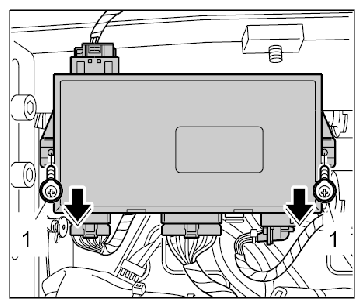

    Fig 2: Unscrewing Fastening Screws
    G09829807Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release electric connectors -A-  on the control unit and disconnect them.
    Fig 3: Disconnecting Electric Connectors On Control Unit
    G09829808Courtesy of PORSCHE CARS NORTH AMERICA, INC.
