Removing Motor For Rear Vertical Adjustment

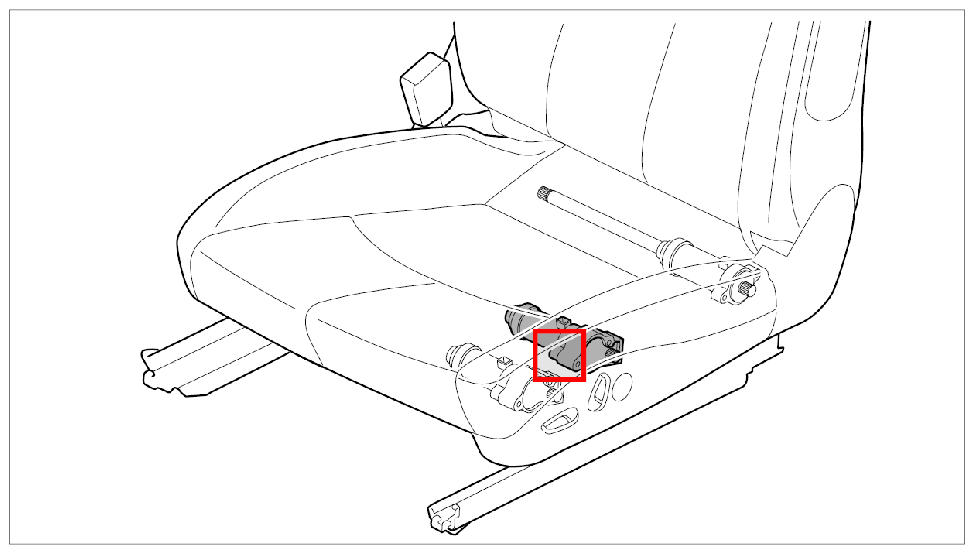

Fig 1: Identifying Installation Position Of Motor For Rear Vertical Adjustment

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Pull connector -1-  off the motor for rear vertical adjustment -3-  .

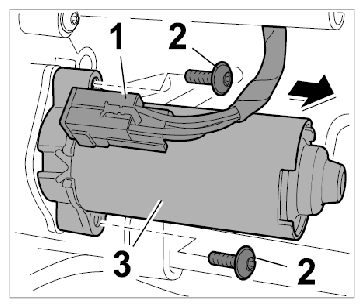

   Fig 2: Removing Motor For Rear Vertical Adjustment

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Unscrew the two fastening screws -2-  and remove motor for rear vertical adjustment -3-  .

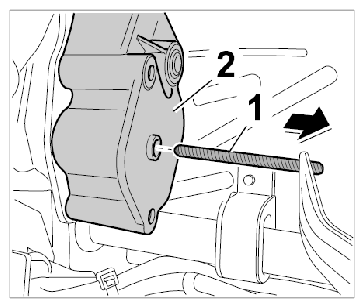

3. Pull drive shaft -1-  out of the gear mount -2-  and check for damage.
   Fig 3: Removing Drive Shaft

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
