Installing Motor For Rear Vertical Adjustment

  1. Insert the drive shaft -1-  into the gear mount -2-  by twisting slightly.

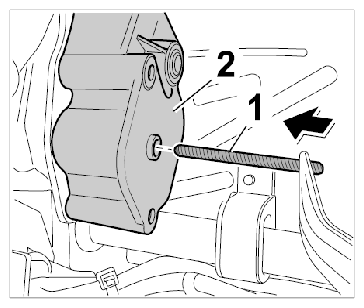

    Fig 1: Installing Drive Shaft
    G09829803Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Push motor for rear vertical adjustment -3-  onto the drive shaft by twisting slightly and secure with the two fastening screws -2-  . → Tightening torque: 7 Nm (5 ftlb.)

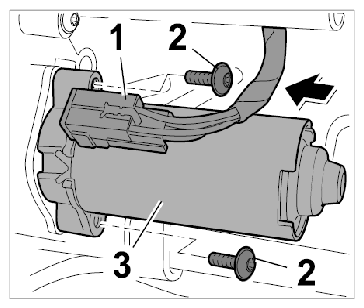

    Fig 2: Installing Motor For Rear Vertical Adjustment
    G09829804Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Attach connector -1-  to motor for rear vertical adjustment -3-  until it engages firmly.
