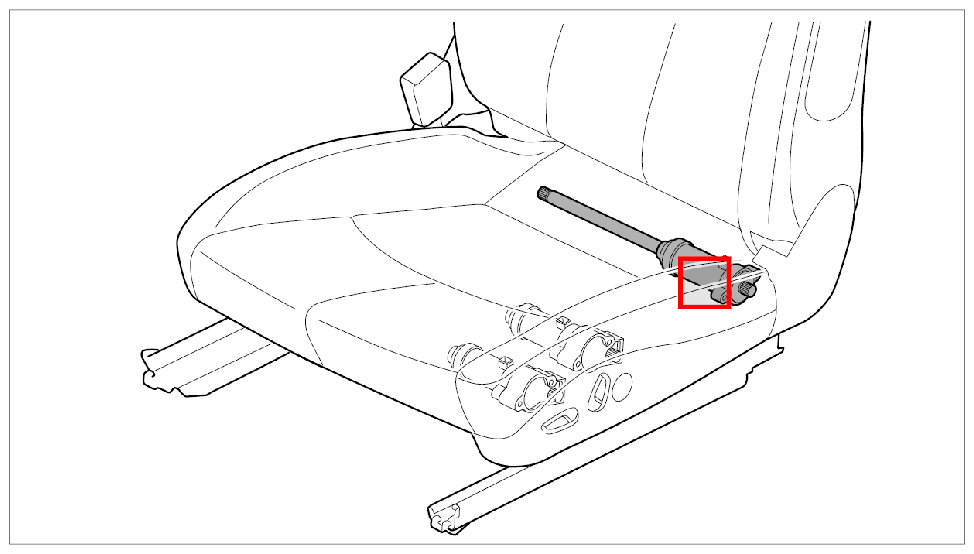

Removing Motor For Seat Adjustment
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

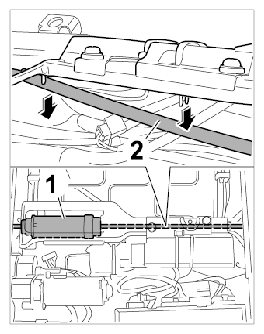

- Unclip sleeve of long drive shaft -2-
of seat adjustment motor -1-
at the support.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

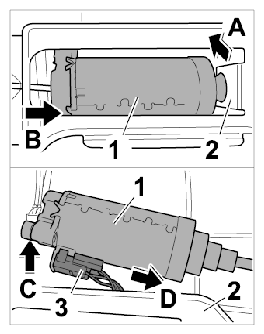

- Press motor for seat adjustment -1-
out of the support -2-
at the boot -arrow A-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Pull motor for seat adjustment -1-
off the short drive shaft -arrow B-
.
- Pull motor for seat adjustment -1-
forward under the support -2-
(-arrow C-
) and pull off connector -3-
(-arrow D-
).

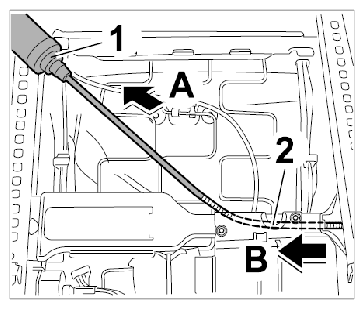

- Pull motor for seat adjustment -1-
and sleeve off the long drive shaft -2-
(-arrow A-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Pull the long drive shaft -2-
out of the gear mount -arrow B-
and check for damage.

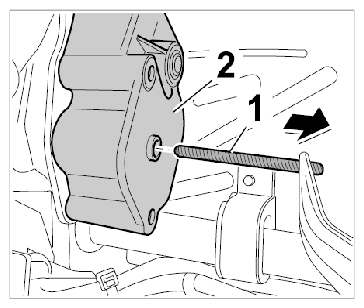

- Pull the short drive shaft -1-
out of the gear mount -2-
and check for damage.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
