Installing Motor For Seat Adjustment

Insert the short drive shaft -1- into the gear mount -2- by twisting slightly.

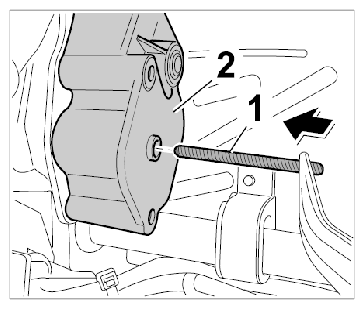

Fig 1: Installing Drive Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert the long drive shaft -2- into the gear mount -arrow A- by twisting slightly.

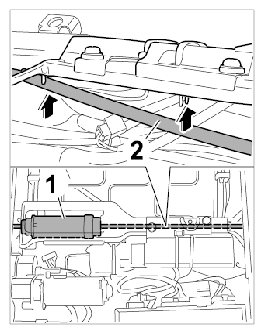

Fig 2: Pushing Motor For Seat Adjustment Onto Drive Shaft
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

When installing the motor for seat adjustment, make sure the two seat rails are in the same position.
Push motor for seat adjustment -1- and sleeve onto the long drive shaft -2- by twisting slightly -arrow A- .
Attach the connector -3- to the motor for seat adjustment -1- (-arrow A- ) until it engages firmly.

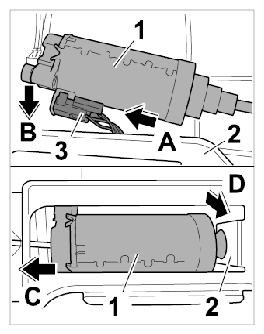

Fig 3: Pressing Motor For Seat Adjustment Into Support
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push motor for seat adjustment -1- under the support -2- (-arrow B- ).
Information

When installing the motor for seat adjustment, make sure the two seat rails are in the same position.
Push motor for seat adjustment -1- onto the short drive shaft by twisting slightly -arrow C- .
Press motor for seat adjustment -1- into the support -2- at the boot -arrow D- .
Clip in sleeve of long drive shaft -2- of seat adjustment motor -1- on the support.

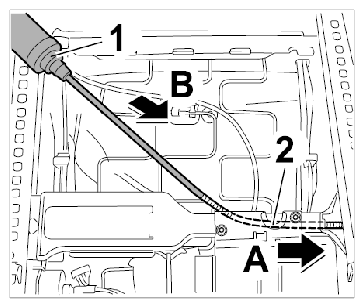

Fig 4: Clipping In Sleeve Of Shaft Of Seat Adjustment Motor
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
