Installing Rear Backrest

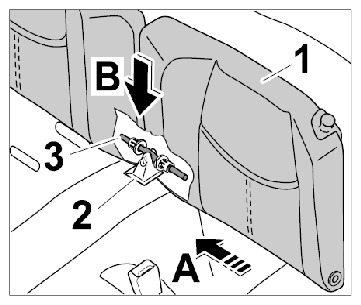

- Insert backrest -1-
into the bearing axle -3-
(-arrow A-
) and engage in the mounting saddle -2-
(-arrow B-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Secure bearing axle -3-
with the fastening screw -2-
. Tightening torque → Tightening torque: 5.6 Nm (4 ftlb.)
- Press in cover -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

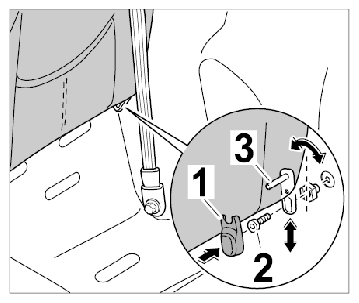

- Lock backrest, align it and screw in fastening screw -2-
on the outer bearing -3-
. Tightening torque → Tightening torque: 25 Nm (19 ftlb.)
- Press in cover -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
