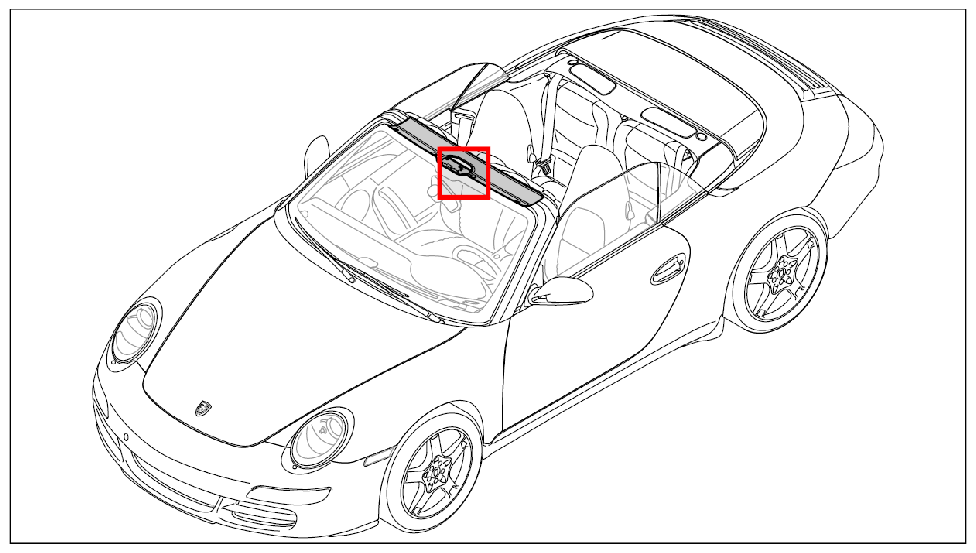

Removing Front Roof Trim Panel
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Unscrew fastening screws -1-
and remove convertible-top peg mount -2-
downwards -Arrow-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Open up the cap -1-
with a screwdriver -Arrow A-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Unscrew fastening screw -2-
and remove mounting saddle -3-
(-Arrow B-
).

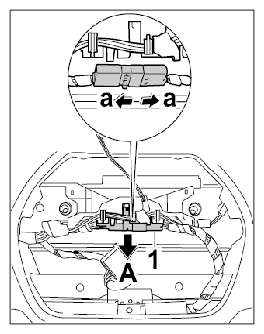

- Unclip wire harness for interior mirror -1-
from the holder -Arrow A-
and disconnect plug connection -Arrows a-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Unclip front roof trim panel and remove it by pulling downwards -Arrows-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
