Installing Front Number Plate Cover (ECE)

Information

The centering rib on the front apron is used for positioning the number plate cover.

  1. Position front number plate cover -2-  on the front apron and align it.
  2. Screw in self-tapping fastening screws -1-  .

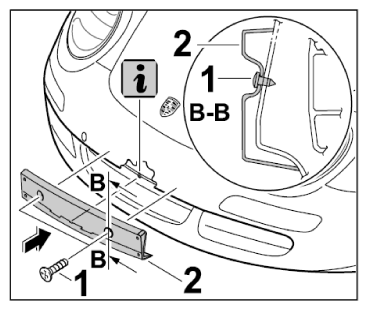

    3. Fig 1: Installing Front Number Plate Cover (ECE)
    G09827055Courtesy of PORSCHE CARS NORTH AMERICA, INC.
