Removing Wire Harness

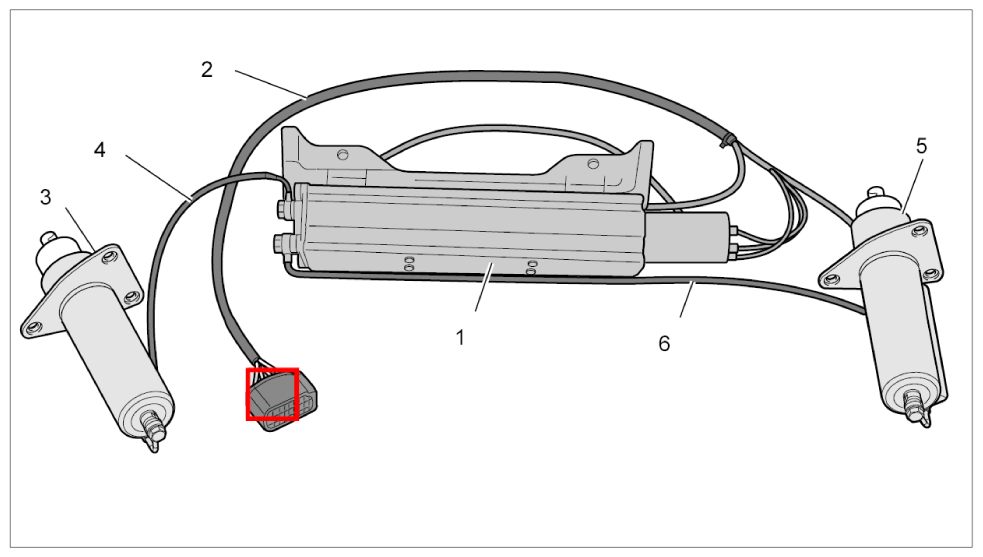

Fig 1: Overview Of Spoiler Drive (Pump Unit)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

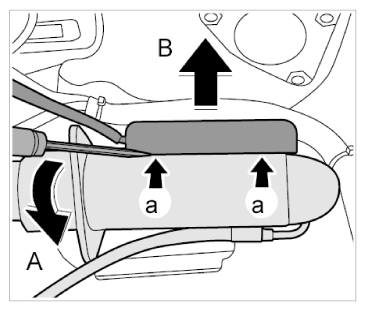

Lever off the cover on the right hydraulic cylinder at points -a- using a screwdriver -Arrow A- and remove it -Arrow B- .

Fig 2: Removing Micro Switch Cover On Hydraulic Cylinder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

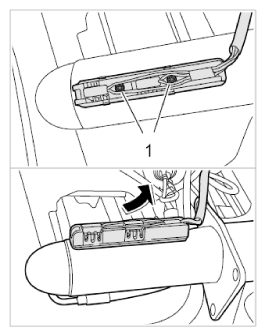

Screw out the fastening screws -1- and remove the holder with the micro switches.

Fig 3: Removing Micro Switches From Hydraulic Cylinder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

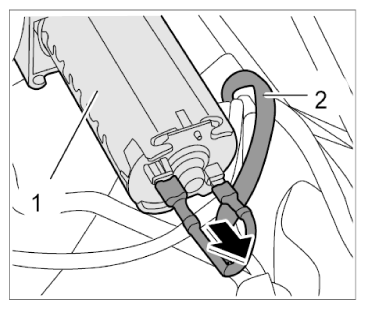

Pull the two wire harness connectors -2- off the pump unit -1- and remove the wire harness -2- .

Fig 4: Pulling Off Connectors Pump Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
