Removing Pump Unit

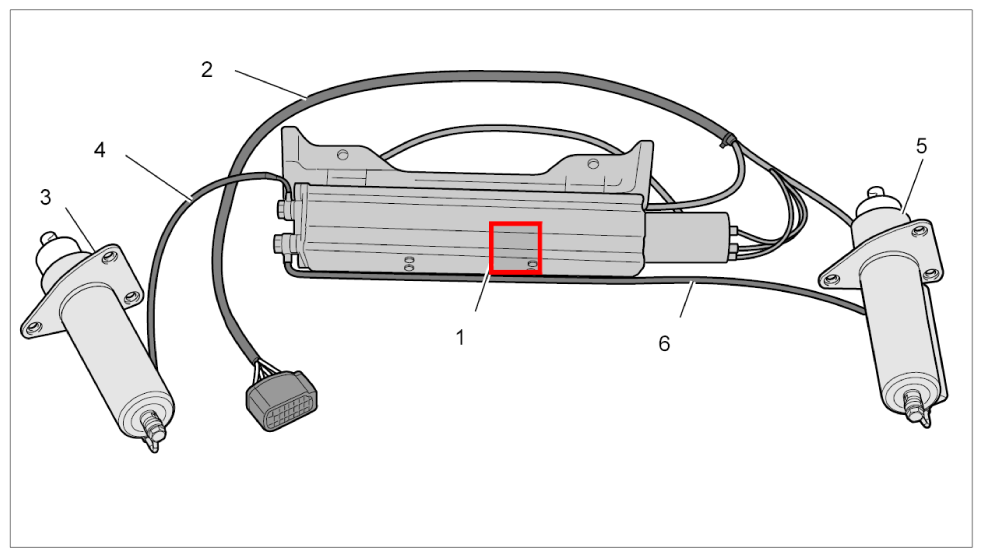

- Pump unit
- Wire harness
- Hydraulic cylinder, left
- Hydraulic line, short
- Hydraulic cylinder, right
- Hydraulic line, long
NOTE:

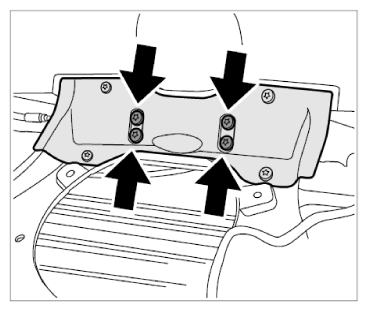

Fastening screws securing pump unit to bracket become loose
- Risk of irreparable damage to pump unit
→ Do not unscrew the fastening screws used to secure the pump unit to the bracket.
→ The bracket cannot be replaced. In the event of damage, replace the pump unit.
Information
- The hydraulic lines, banjo bolts and sealing rings must always be replaced when replacing the pump unit!
Information
Open the banjo bolts on the Pentosin tank carefully because the holders and pump unit are pressurized and the Pentosin can spray out.
Information
Open the banjo bolts on the Pentosin tank carefully because the holders and pump unit are pressurized and the Pentosin can spray out.
Information
Counter at the hydraulic line with an open-ended wrench when loosening the banjo bolt.
- Screw hydraulic lines off the pump unit.

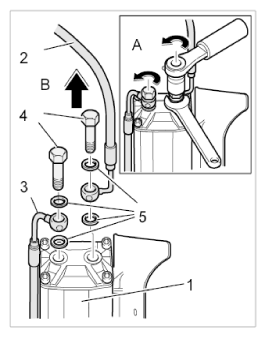

- 1.1. Unscrew long banjo bolts -4-
on the short hydraulic line -2-
and the long hydraulic line -3-
on the pump unit -1-
(-arrow A-
).
Remove long banjo bolts -4- , hydraulic lines -2 and 3- and sealing rings -5- from the pump unit -1- (-arrow B- ).
- 1.1. Unscrew long banjo bolts -4-
on the short hydraulic line -2-
and the long hydraulic line -3-
on the pump unit -1-
(-arrow A-
).
