Installing Wire Harness

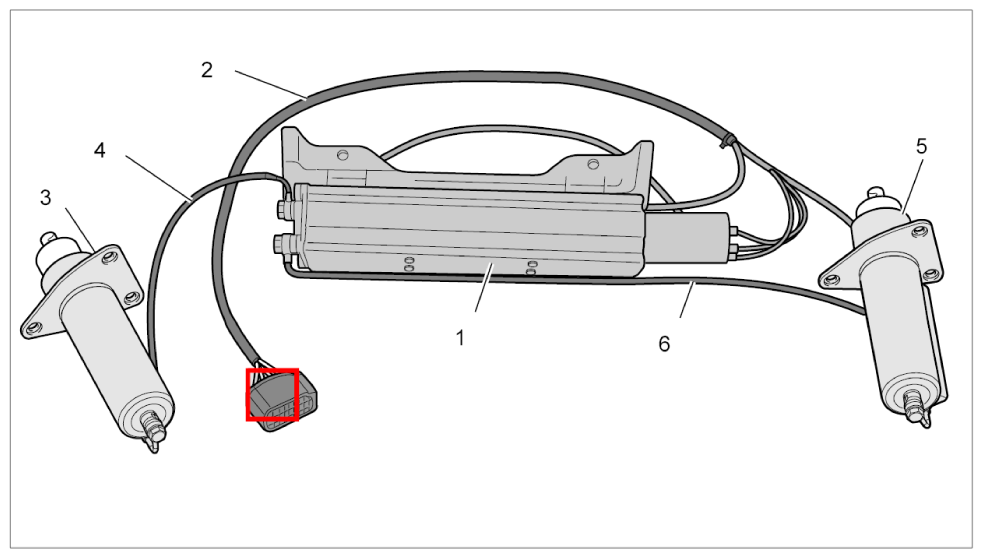

Fig 1: Overview Of Spoiler Drive (Pump Unit)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

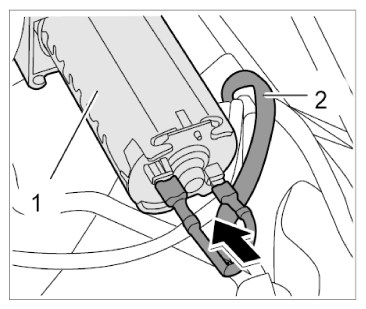

Lay the wire harness and connect the two wire harness connectors -2- to the pump unit -1- .

Fig 2: Connecting Connectors To Pump Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

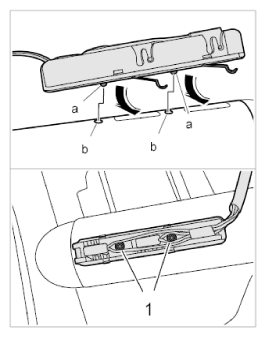

Make sure that pins -a- are inserted into the bores -b- .
Insert the holder with the micro switches into the hydraulic cylinder and secure with fastening screws -1- . → Tightening torque: 0.5 Nm (0.5 ftlb.)

Fig 3: Securing Micro Switches On Hydraulic Cylinder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

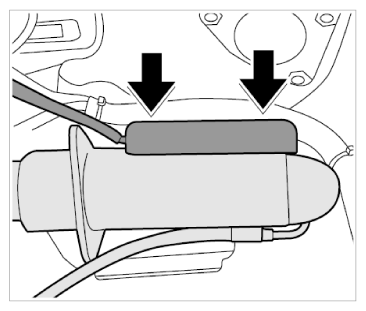

Press the cap onto the micro switches until it engages securely.

Fig 4: Fitting Cap For Micro Switches
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
