Filling The Pump Unit

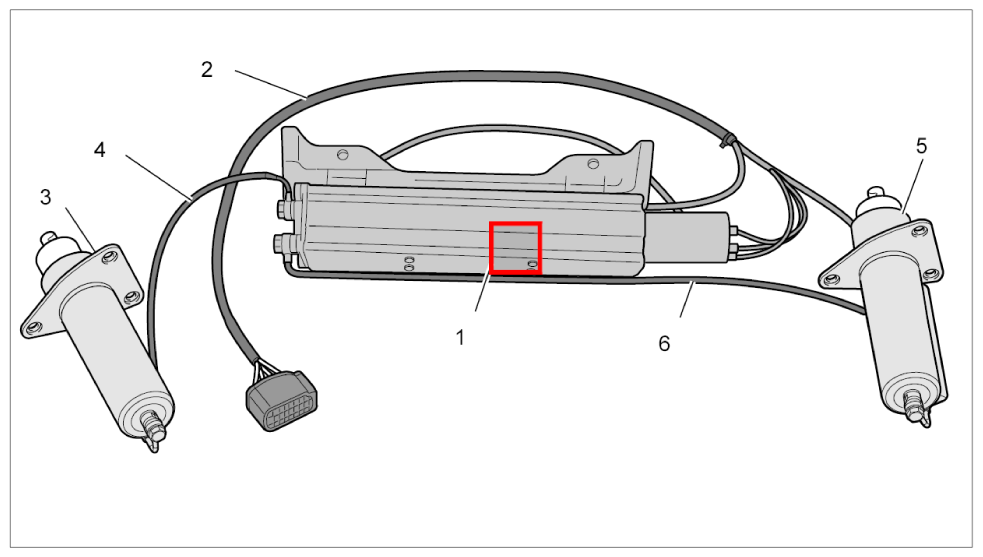

  1. Pump unit
  2. Wire harness
  3. Hydraulic cylinder, left
  4. Hydraulic line, short
  5. Hydraulic cylinder, right
  6. Hydraulic line, long
    7. Fig 1: Overview Of Spoiler Drive (Pump Unit)
    G09827010Courtesy of PORSCHE CARS NORTH AMERICA, INC.

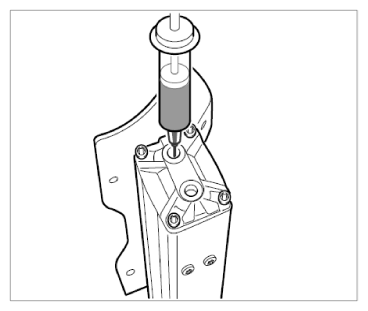

  1. Hold the pump unit vertically and use a syringe  to fill each chamber of the pump with 20 ml of Pentosin  .
    Fig 2: Holding Pump Unit
    G09827011Courtesy of PORSCHE CARS NORTH AMERICA, INC.
