Filling The Hydraulic Cylinder

  1. Pump unit
  2. Wire harness
  3. Hydraulic cylinder, left
  4. Hydraulic line, short
  5. Hydraulic cylinder, right
  6. Hydraulic line, long

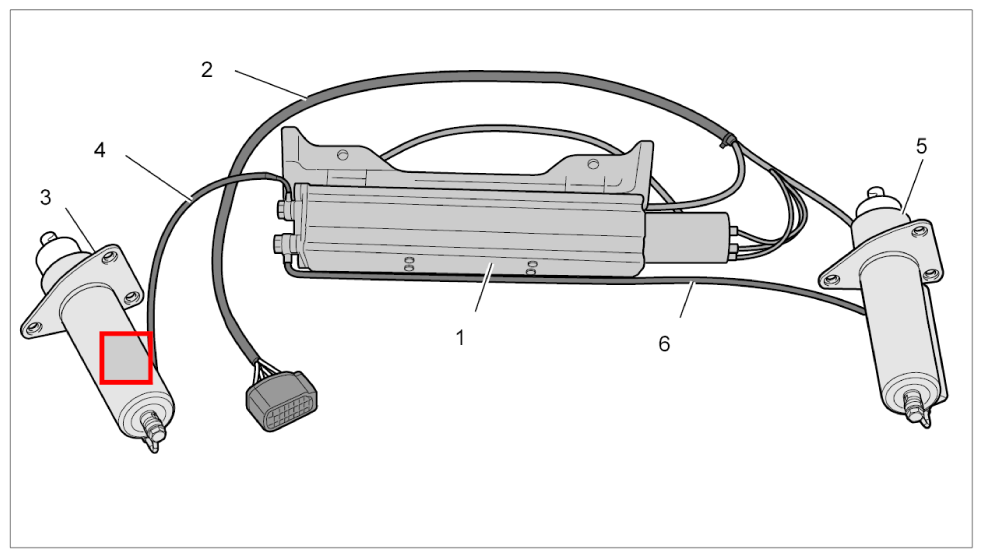

    7. Fig 1: Overview Of Spoiler Drive (Pump Unit)
    G09827017Courtesy of PORSCHE CARS NORTH AMERICA, INC.

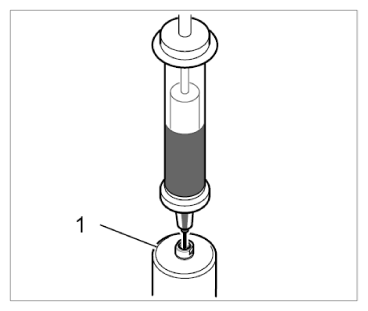

  1. Hold the two hydraulic cylinders -1-  vertically and use a syringe  to fill each hydraulic cylinder with 5 ml of Pentosin  .
    Fig 2: Holding Hydraulic Cylinder
    G09827018Courtesy of PORSCHE CARS NORTH AMERICA, INC.
