Removing Air Guide

  1. Unscrew the screw-in pins -1-  and remove the clips -2-  (-Arrow A-  ).
  2. Fold out the air guides -Arrow B-  and remove them -Arrow C-  .

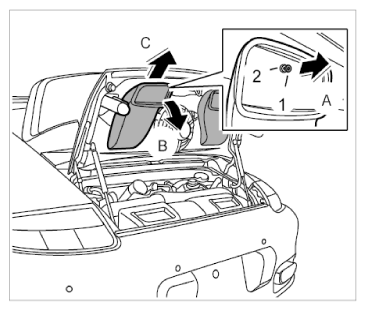

    3. Fig 1: Removing Air Guide On Rear Lid
    G09826975Courtesy of PORSCHE CARS NORTH AMERICA, INC.
