Installing Spoiler Drive: Notes

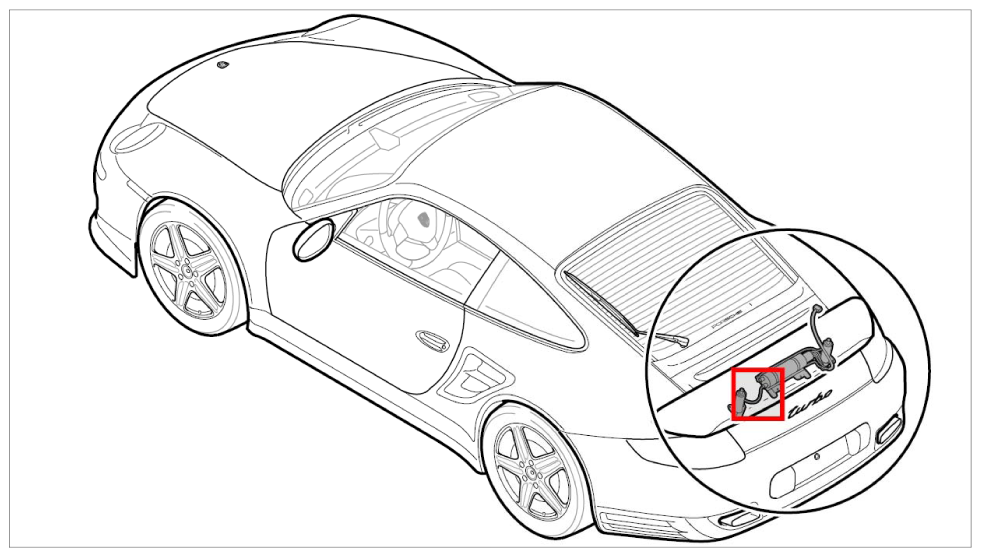

Fig 1: Identifying Spoiler Drive Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Insert the two hydraulic cylinders together with the pump unit. Place hydraulic cylinders in installation position and secure with fastening screws -1- . → Tightening torque: 10 Nm (7.5 ftlb.)

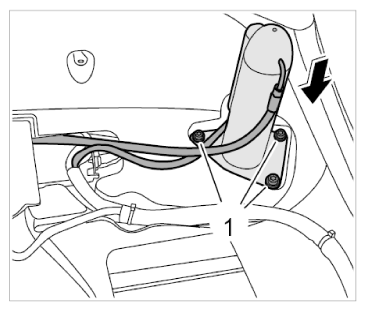

Fig 2: Securing Hydraulic Cylinders For Rear Spoiler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in wire harness.

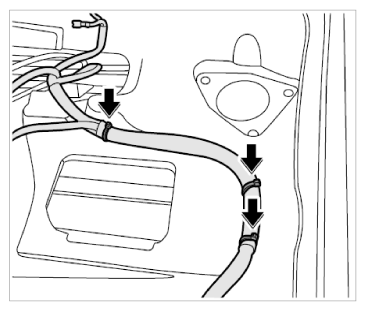

Fig 3: Clipping In Wire Harness For Rear Spoiler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Connect connector on auxiliary brake light. → INSTALLING AUXILIARY HEADLIGHT
Fit pump unit -2- and screw in fastening screws -1- . → Tightening torque: 10 Nm (7.5 ftlb.)

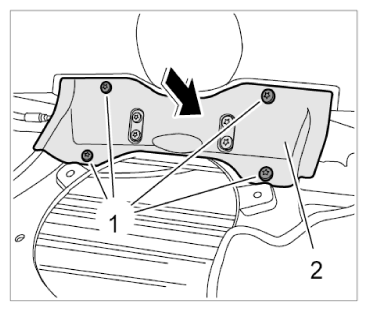

Fig 4: Securing Pump Unit For Spoiler Drive
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
