Installing Air Guide

  1. Remove the remains of the old double-sided adhesive tape strips -a-  and stick on strips of new double-sided adhesive tape.
  2. Insert the air guides -Arrow A-  and fold them up -Arrow B-  .
  3. Insert the clips -2-  and then press in the screw-in pins -1-  (-Arrow C-  ).

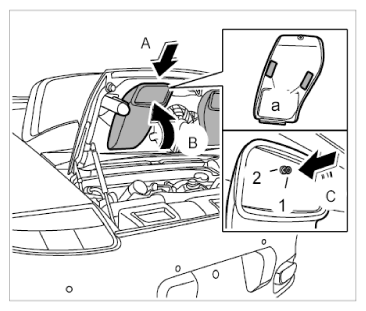

    4. Fig 1: Installing Air Guides
    G09826987Courtesy of PORSCHE CARS NORTH AMERICA, INC.
