Removing Rear Spoiler

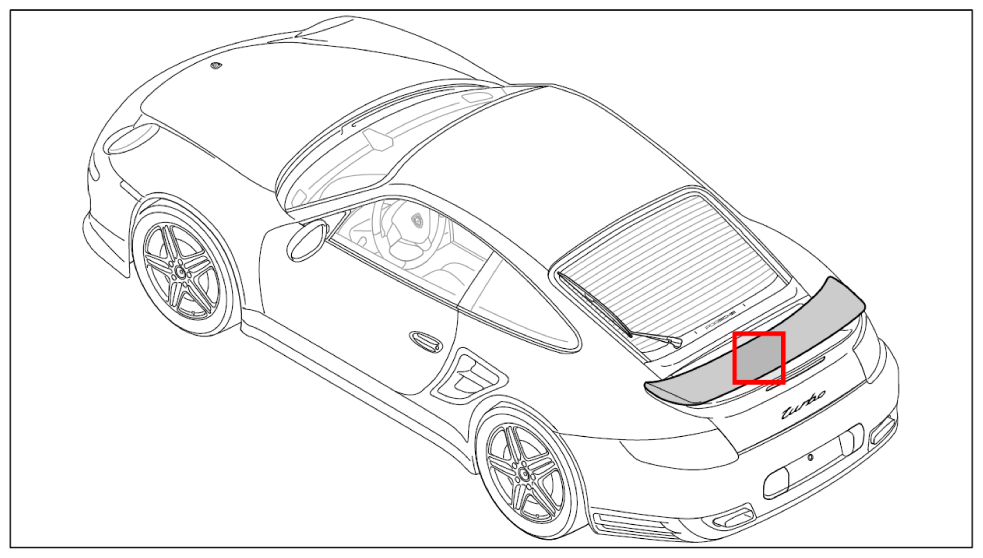

Fig 1: Identifying Rear Spoiler Position
G09826957Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unscrew fastening screws -1-  at the left and right.
  2. Remove the rear spoiler -2-  from the rear lid -3-  (-arrows-  ).

    Information

    Only when replacing the rear lid.

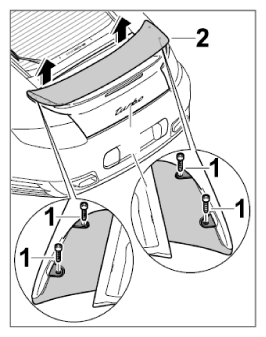

    Fig 2: Removing Rear Spoiler
    G09826958Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  3. Unscrew fastening screws -1-  on the retainer plate -2-  at the left and right and remove it from the rear lid -3-  (-arrow-  ).

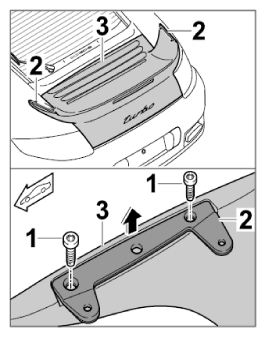

    Fig 3: Removing Retainer Plate
    G09826959Courtesy of PORSCHE CARS NORTH AMERICA, INC.
