Installing Rear Spoiler

Position the retainer plate -2- at the left and right on the rear lid -3- (-arrow- ) and secure with the fastening screws -1- .
→ Tightening torque: 9.7 Nm (7.5 ftlb.)

Fig 1: Installing Retainer Plate
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position the rear spoiler -2- on the rear lid -3- (-arrows- ) and secure with the fastening screws -1- . → Tightening torque: 9.7 Nm (7.5 ftlb.)

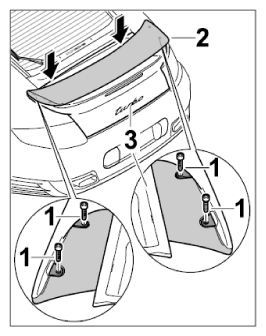

Fig 2: Installing Rear Spoiler
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
