Removing Air Inlet Grille

Fig 1: Identifying Air Inlet Grille Position
G09826777Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unclip air inlet grille -1-  at the top, bottom and front by inserting a plastic wedge at the clips -Arrows A-  .

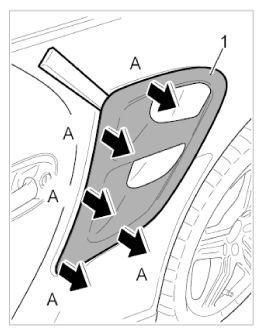

    Fig 2: Unclipping Air Inlet Grille
    G09826778Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull the air inlet grille -1-  forward out of the two retaining clips -2-  in the rear upper area -Arrow A-  and remove it.
    Fig 3: Removing Air Inlet Grille
    G09826779Courtesy of PORSCHE CARS NORTH AMERICA, INC.

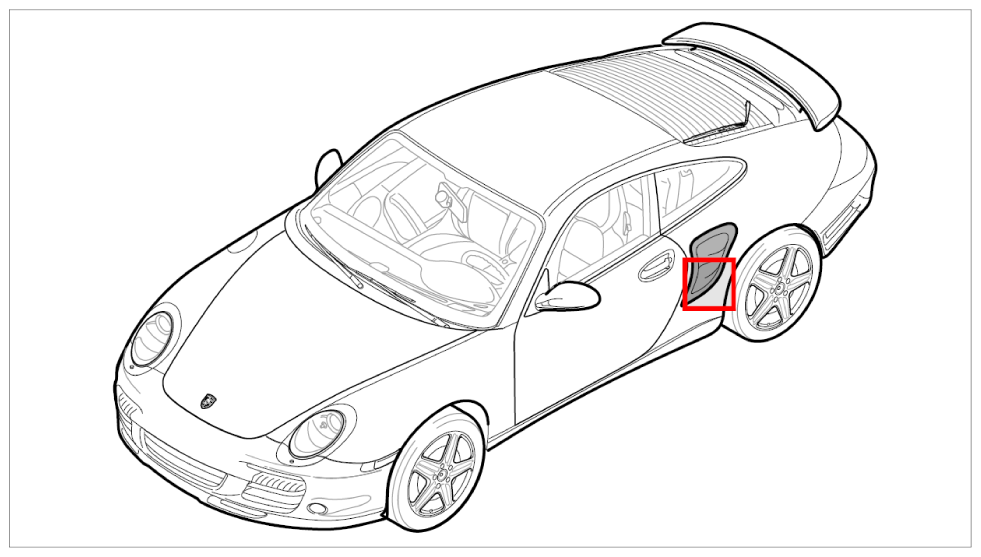

Fig 1: Identifying Air Inlet Grille Position
G09826928Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Unclip air inlet grille -1-  at the top, bottom and front by inserting a plastic wedge at the clips -Arrows A-  .

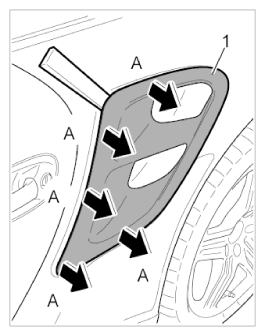

    Fig 2: Unclipping Air Inlet Grille
    G09826929Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Pull the air inlet grille -1-  forward out of the two retaining clips -2-  in the rear upper area -Arrow A-  and remove it.

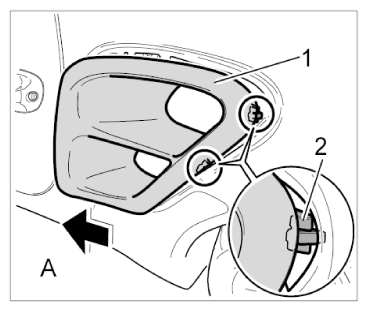

    Fig 3: Removing Air Inlet Grille
    G09826930Courtesy of PORSCHE CARS NORTH AMERICA, INC.
