Technical Values
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Affixing logo to front apron | Gap dimension A | 70 mm | +/-2 mm | ||
|

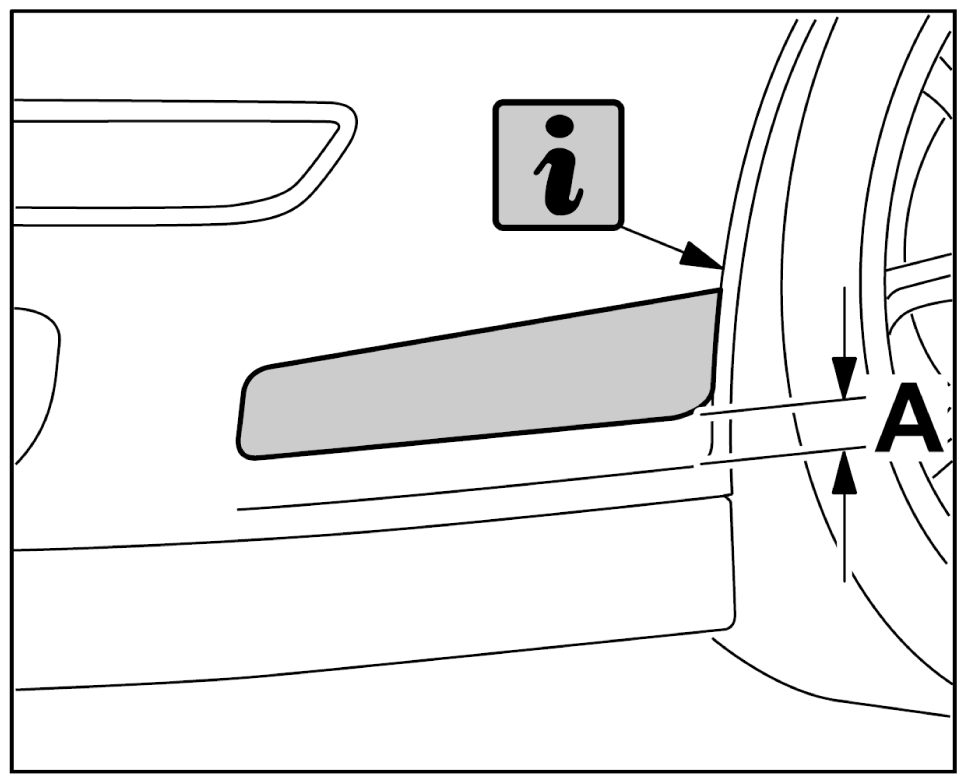

Affixing logo to the front apron |
|||||
| Affixing logo to the door | Gap dimension A | 20 mm | +/-2 mm | ||
| Affixing logo to the rear apron | Gap dimension A | 20 mm | +/-2 mm | ||
|

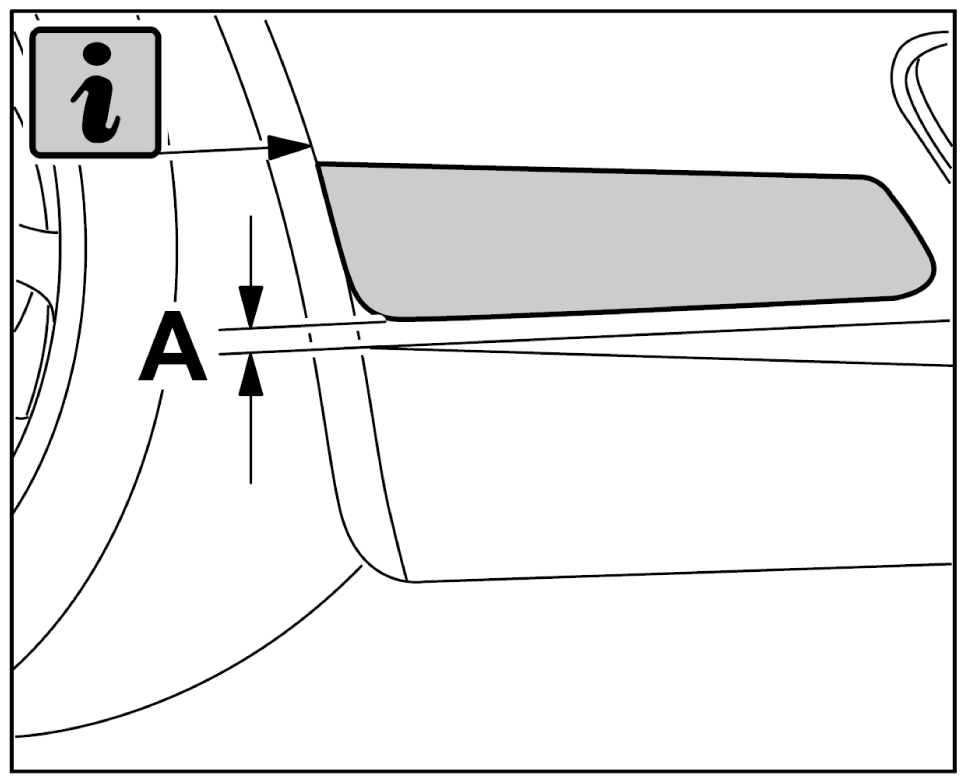

Affixing logo to the rear apron |
|||||
| Decorative film | Minimum temperature | 15°C | |||
